TC_BOLT_Kit_12v_VR6_Double
This bolt and pin kit has all parts needed except Upper Chain Tensioner Pin. Used when installing a new timing chain kit. Parts are all Genuine VW.

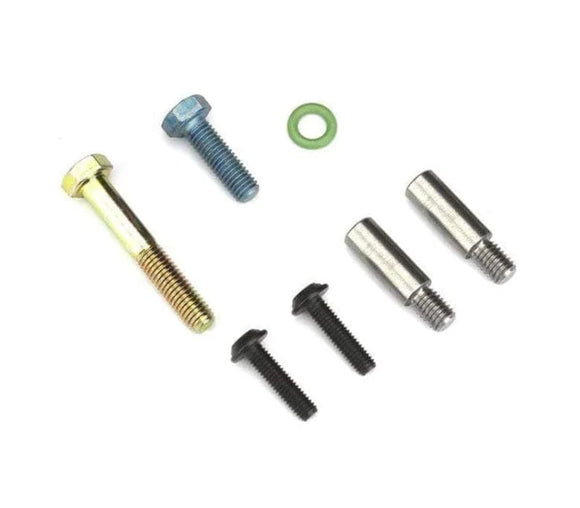

Kit Includes:
- (2) M6x24 Bolts secures lower chain tensioner
- (2) Guide Pins secures to lower timing chain guide rail
- (1) M8x26 Bolt secures upper guide to cylinder head
- (1) M8x50 Bolt
- (1) Timing cover sealing o-ring
FITS: All 12v VR6 engines from 1992-1996.5 with DOUBLE CHAINS only.
Note : Does not include Upper Chain Tensioner Pin.
---
Kit Includes:
- (1) 90007404003 - Bolt - M8x50 (VW/Audi)
- (2) 021109471 - Timing Chain Guide Rail Lower Bolt | VR6 (VW/Audi)
- (1) N0102724 - Bolt - M8x26 (VW/Audi)
- (2) N90923801 - Bolt - M6x24 (VW/Audi)
- (1) N90041102-VR - Timing Cover Seal O-Ring - VW/Audi VR6 / GTI / R32 / B3 Passat / Mk1 TT (Victor Reinz)
---
This part fits the following vehicles
| Make | Model | Submodel | Engine | Drive |
|---|---|---|---|---|
| VW | Corrado (1990-1995) | VR6 | ||
| VW | Golf/GTI Mk3 (1994-1999) | GTI | VR6 | |
| VW | Mk3 (1994-1999) | Jetta | VR6 12v | |
| VW | Passat B3 (1990-1994) | VR6 |
