VTT-BMW-F90-REAR-BRAKE

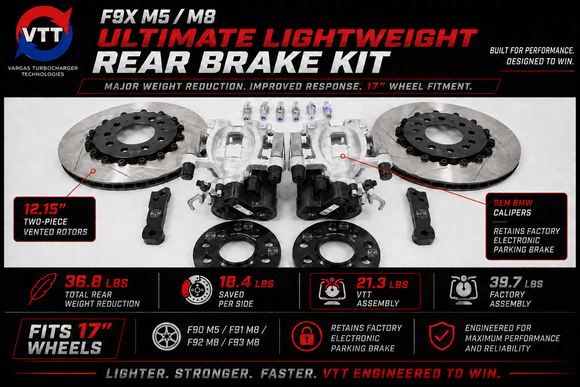

VTT F9X M5/M8 Ultimate Lightweight Rear Brake Kit

F90 M5 / F91 M8 / F92 M8 / F93 M8

36.8 lbs off the rear. 18.4 lbs saved per side. 17″ wheel fitment. OEM BMW calipers. Factory electronic parking brake retained. 12.15″ two-piece vented rotors.

The VTT F9X M5/M8 Ultimate Lightweight Rear Brake Kit was engineered to remove a massive amount of unsprung and rotating mass while preserving the factory functionality that makes the car usable on the street.

Don’t confuse this with a stripped-down, single-purpose drag brake conversion.

The rear of the F9X presents a different engineering challenge from the front. The factory rear calipers incorporate the electronic parking brake, making it difficult to reduce brake weight without sacrificing factory functionality.

The VTT F9X Ultimate Lightweight Rear Brake Kit takes a different approach.

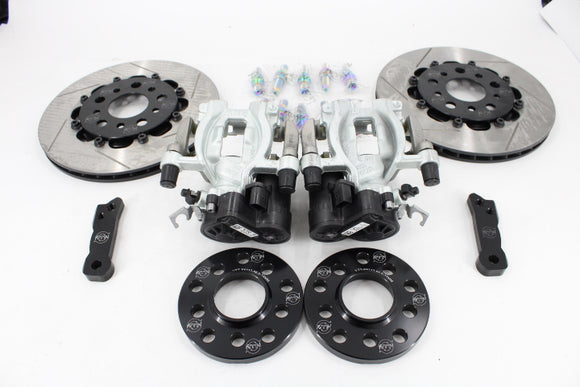

Using 12.15″ two-piece vented rotors with lightweight billet aluminum hats, F9X-specific VTT mounting components, and OEM BMW rear calipers, we’ve removed 36.8 lbs from the rear axle while retaining the factory electronic parking brake.

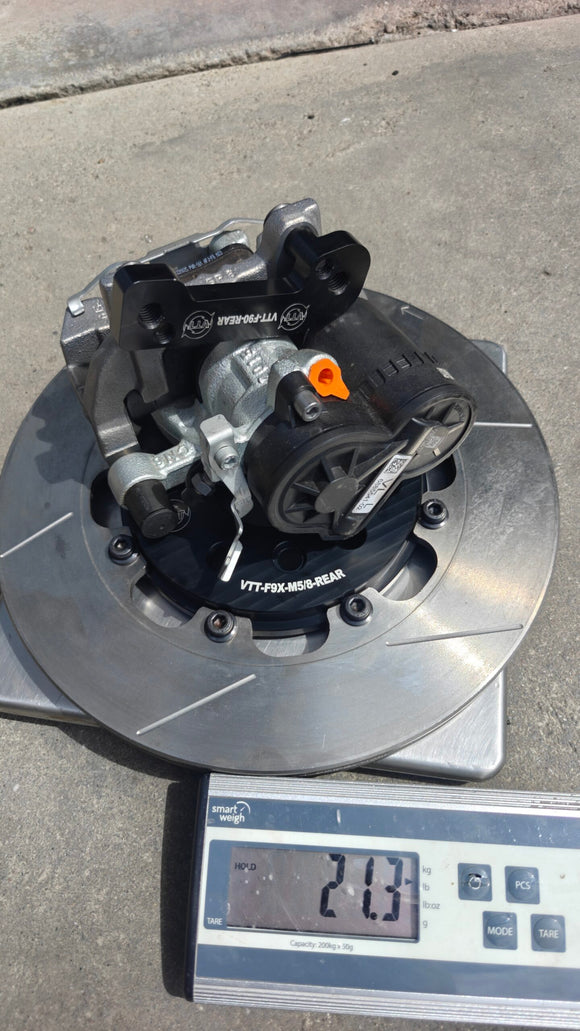

The complete VTT rear brake assembly weighs just 21.3 lbs per side, compared with 39.7 lbs per side for the factory assembly.

That is an 18.4-lb reduction at each rear corner.

Less brake weight.
Less rotating mass.
Smaller and lighter wheel options.
More tire options.
More traction potential.
Factory electronic parking brake retained.
Real braking capability.

Pedal Feel Notice: The F9X M5/M8 brake kit may have a noticeably lower pedal engagement point than the factory brakes. Allow time to become familiar with the changed pedal feel in a safe, controlled setting before normal driving. A soft, spongy, or sinking pedal is not normal and requires inspection before driving.
