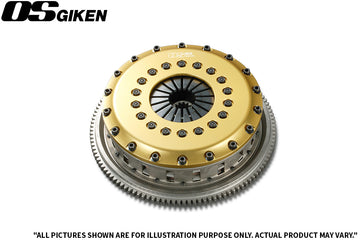

OS Giken Mazda RX8 13B-MSP R Series Dampened Twin Plate w/Floating Center Hub - Req. MZ121-BH60M

MZ101-BH6

The R Clutch series line-up is our highest capacity clutch and is specifically designed for vehicles with a significant increase in engine power. Our unique floating center hub design is built to withstand transmission shock and abuse from high-powered racecars.

The R2CD Clutch is specifically designed for vehicles with a significant increase in engine power and torque. It is capable of handling up to 880lbs ft of torque and immense amounts of heat. This clutch is often found in our competition drift and drag vehicles. Our unique floating dampened center hub design is built to withstand transmission shock and abuse from high-powered racecars.

• Mazda RX-7 (FC3S)
• Mazda RX-7 (FD3S)
• Mazda RX-8

Included Components:

• Twin Plate Clutch Assembly with Flywheel

Installation Notes:

• FC3S/FD3S Requires (N351-11-521) & 6 BOLTS (8051-27-236)
• RX8 Requires OEM Counterweight (N3Z2-11-52X) & 6 Bolts (8051-27-325/236)
• FC3S/RX8 Requires MZ101-RSA0K
• FD3S Requires MZ121-ALT

• Please consult installation guide

• Requires OEM Pilot Bearing or Bushing
