0-150 PSI Pressure Sensor

P3PSEN

Keep an eye on those pressures with P3 Gauges simple analog pressure sensor

5-volt sensor **DO NOT POWER WITH 12 VOLT SOURCE**

0-150 PSI pressure sensor

• Adds pressure readout to P3 gauge using analog input
• Can measure oil, fuel, water, or air pressure
• 10" wiring harness
• 1/8" fitting
• Can "T" into oil pressure galley along with factory oil pressure switch

Can be used to monitor

• Engine oil pressure
• Fuel pressure
• Air ride pressure
• Coolant system pressure

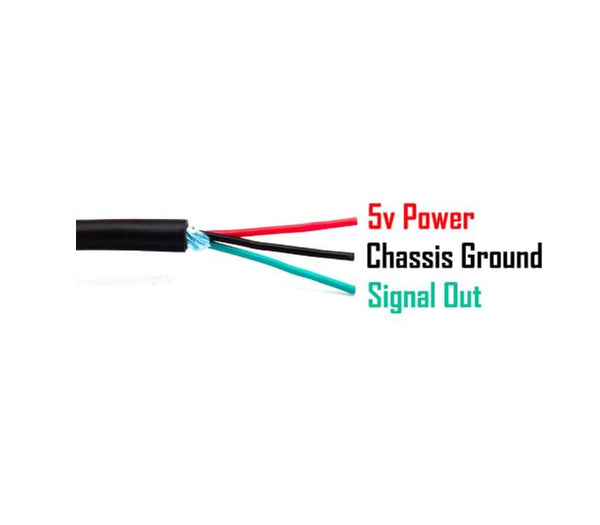

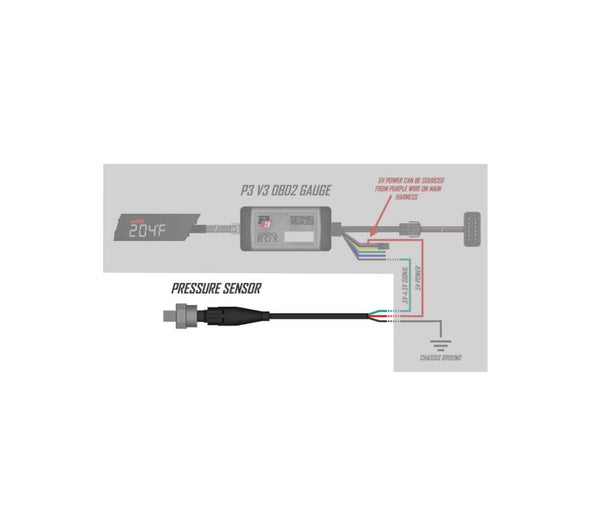

Simple 3 wire harness

• Red - 5-volt power supply (can be sourced from the purple wire on P3 harness)
• Black - Chassis ground
• Green - Signal output (routed to the brown or blue wire on P3 harness)
