P3 Analog Gauge - BMW E9X (2004-2013)

$374.99 CAD

P3 Cars SKU: AP3BE9X-1

Pre-installed in OEM Vent?: No

AP3BE9X

The P3 Analog Gauge *This gauge IS NOT plug and play. Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analog inputs.



4 Available Analog Readouts

  • Analog boost (yellow/purple/black - dedicated plug for analog boost sensor) *boost tap not included
  • Analog input 1 (brown wire - can read any 0-5 volt linear output sensor)
  • Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)
  • Battery voltage (red wire / black wire - read through power and ground wires)



  • optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

Optional Add-Ons

  • OBD2 power/ground tap harness allows you to connect to power and ground through your OBD2 port without any wire splicing (does not add OBD2 functionality)
  • P3 ESVA (ethanol sensor voltage adaptor) allows your gauge to read ethanol content and fuel temp directly from any Continental/GM Ethanol sensor *Ethanol sensor not included
  • LC-2 Wideband o2 Sensor Kit allows your gauge to read your vehicle's Air/Fuel Ratio. Includes everything you need to add a wideband sensor to your exhaust.
  • Any Other 0-5 Volt Linear Output Sensor Can Be Read oil pressure, oil temp, coolant temp, air ride pressure, egt, etc...

OEM Vent Option

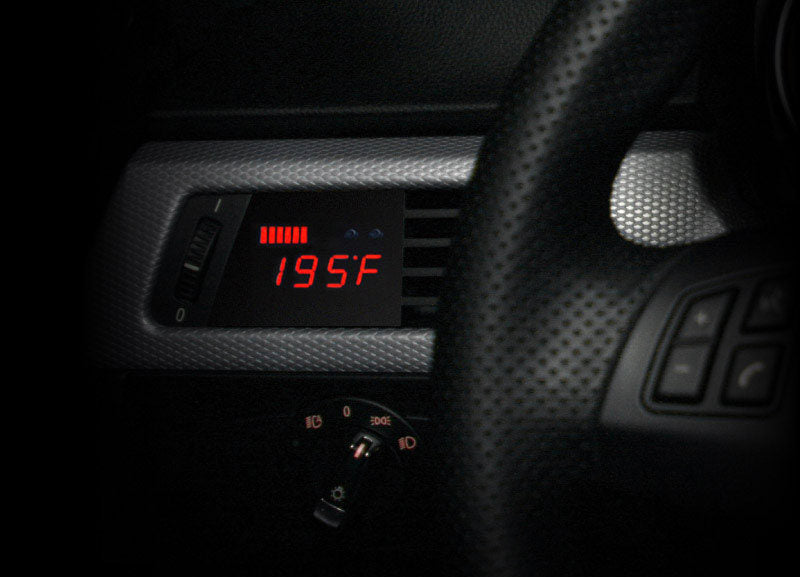

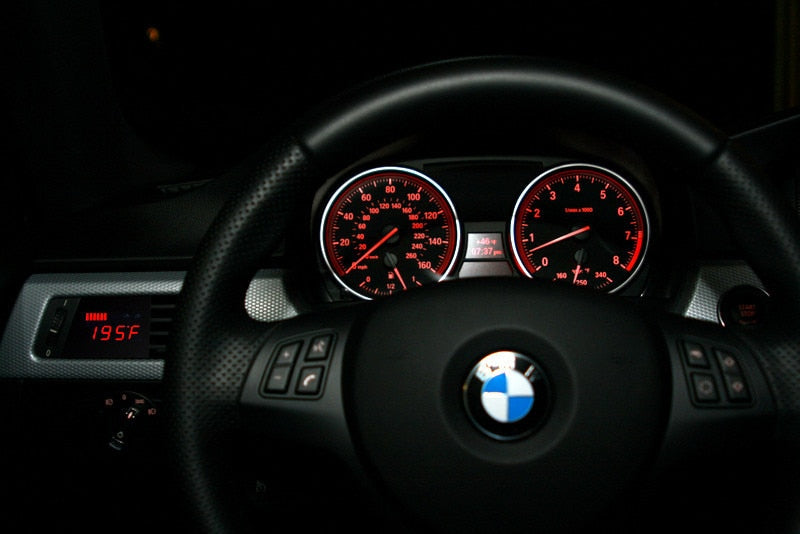

  • We install the display in an OEM vent for your vehicle to make your install even easier.

Analog gauge base kit includes

  • Integrated display
  • Analog Box control unit
  • Main harness
  • Hard-wire harness
  • Analog boost sensor *boost tap not included
  • Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
  • 3 zip ties
  • 2 scotchlok wire taps

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
