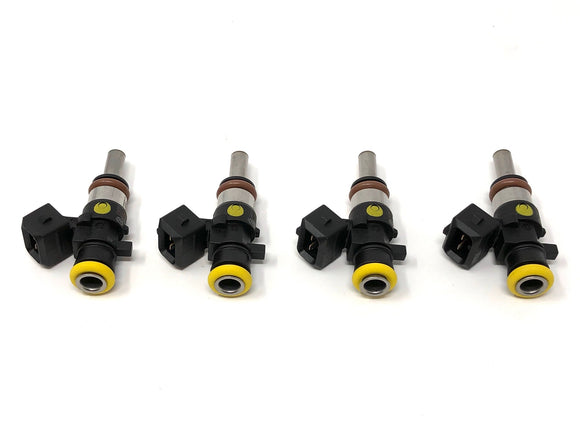

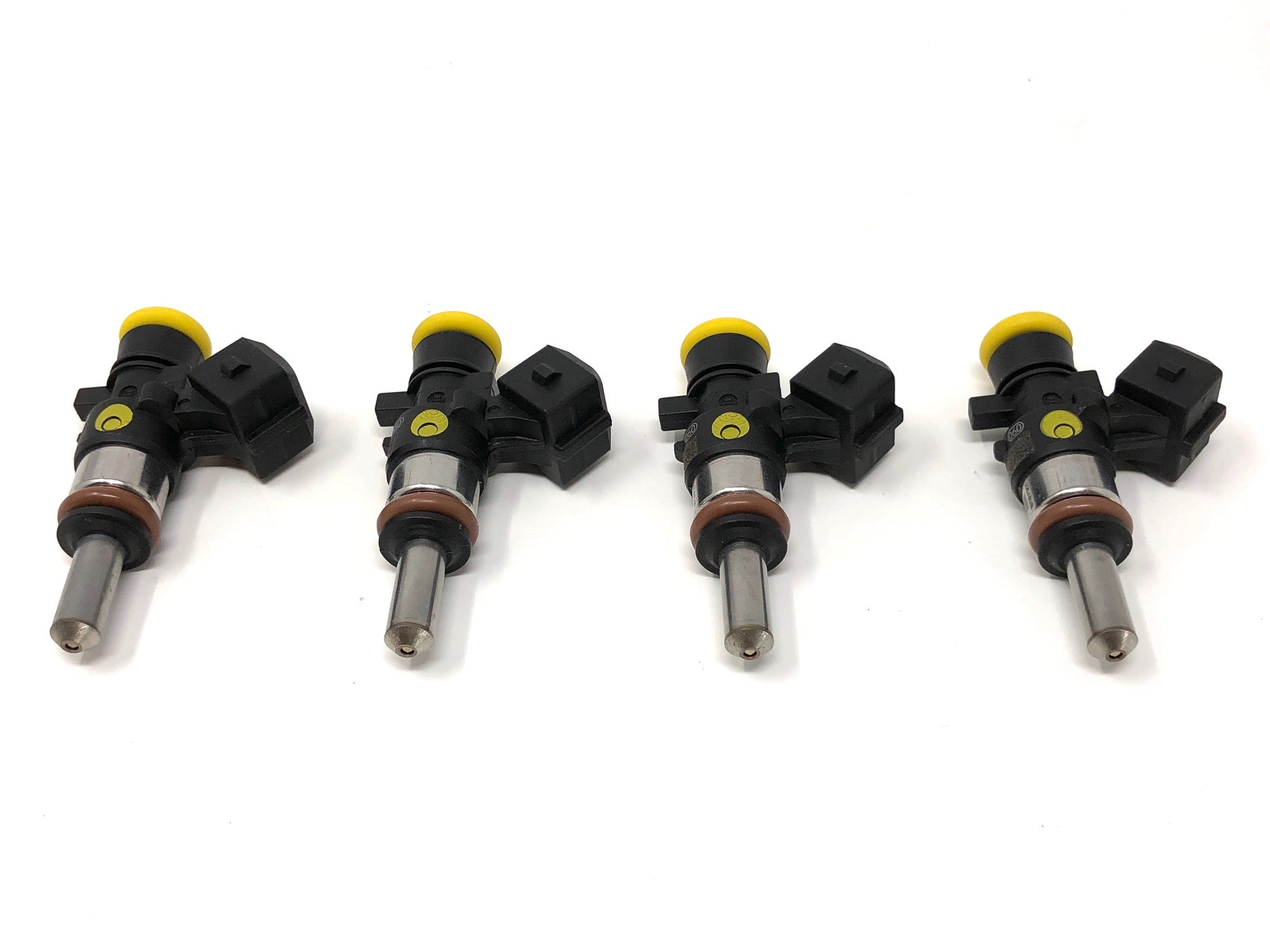

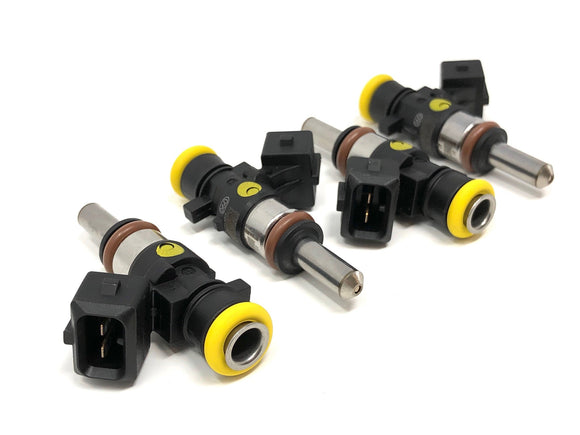

The Precision Raceworks Genuine Bosch Motorsports EV14 extended tip fuel injectors featuring EV1 connector matched and packaged in pack of 4 or 6 units.
Features
- Full stainless wetted internals for corrosion resistance compatible with all known fuels
- Proprietary spray pattern perfect for use in EA888.3 & center fire BMW manifolds
- Strong magnetic valve design capable of stable operation up to 10 bar
- Advertised flow rates
-
925cc* Version
- Minimum Flow 800cc @ 3bar (43.5 PSI)
- Minimum Flow 925cc @ 4bar (58 PSI)
- Minimum Flow 1050cc @ 5 bar (72.5 PSI)
-
1300cc* Version
- Minimum Flow 1125cc @ 3bar (43.5 PSI)
- Minimum Flow 1300cc @ 4bar (58 PSI)
- Minimum Flow 1450cc @ 5 bar (72.5 PSI)
- Matched both Static and Dynamic within 2%
- Certificate of Conformance provided with each set proving actual flow data
- Individually serialized injectors that match flow data from Certificate of Conformance
For more product details see the specifications tab
*Actual flow rate may vary, as the advertised rate is based upon an overall average.
Specifications
Weight: 0.35 lbs (4 pack) or .53 lbs (6 pack)
Wetted materials: Full Stainless
Advertised Flow: See Product Description
Fuel Compatibility: All known fuels
Flow Matched: 2% or better (250% more accurate than off the shelf Bosch injectors)
Connection Type: EV1
Injector Dead Times
1300cc / 925cc - Injector Dead Times
|
|||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
