201-0409

The Precision Raceworks X58 Plug and Play install harness for the Motiv ReFlex Plus is a must for anyone adding a ReFlex Plus to their S58 or B58 vehicle!  With this harness, there is no modifying (cutting, crimping, or splicing) of your factory harness, and is 100% reversible if you ever need to return your car to stock!  Simply make the appropriate connections and you are done!

What makes the Precision Raceworks Harness different from others?

Simply put, the main harness included with the Motiv Reflex is made very well.  The only real downside to the standard Motiv Reflex harness is the sub harness, which requires splicing into the factory wiring.  So we made a replacement for the sub harness to make everything plug and play.  This saves you a great deal of money when compared to other plug and play options on the market, which ditch the entire harness you are already paying for when you purchase your Reflex Plus controller.

Highlights of the Precision Raceworks X58 Harness:

• Harness Certified by Motiv Motorsports

• 100% Plug and Play for easy install

• Compatible with MHD & MHD+ | EcuTek | BM3
• Assembled in a ISO 9001 Certified Facility

• Made with automotive grade wiring
• Installs in as little as 1 hour

• Easily Removable, factory harness is not modified
• Proudly designed in Texas


What's included in the box:

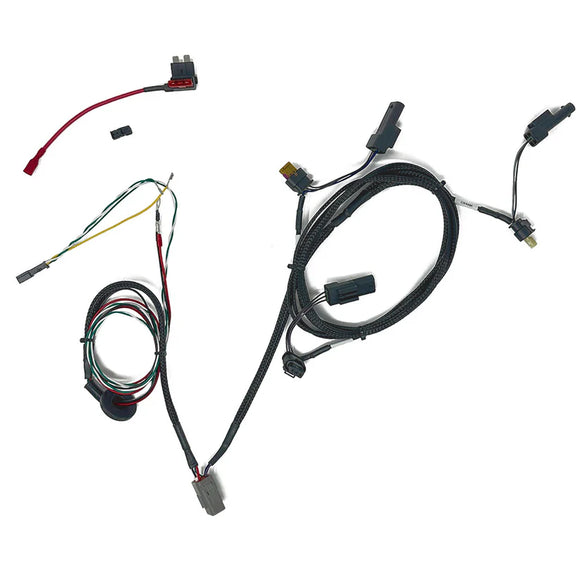

• Plug and play sub harness (compatible with ReFlex Plus standard harness)


Recommended Accessories Sold Separately:

• Motiv ReFlex Plus Controller

• Plug and Play Flex Fuel harness

• Precision Raceworks Ethanol 360 fittings
• Genuine Continental Flex Fuel Sensor
• Motiv 0-10bar (150psi) Fuel Pressure Sensor
• Precision Raceworks B58 or S58 Port Injection Kit
• Motiv ReFlex Plus Replacement Main Harness

Note: This Harness replaces only the signal and power sub harness portion of the Motiv Reflex.  Standard universal Motiv ReFlex Plus harness required.

Wire Type: FEP

Wire Gauge: 18-22GA

Replaces: Motiv ReFlex Universal Install Harness

Requirements:

• B58 or S58 engine
• Original Motiv ReFlex Main Harness
