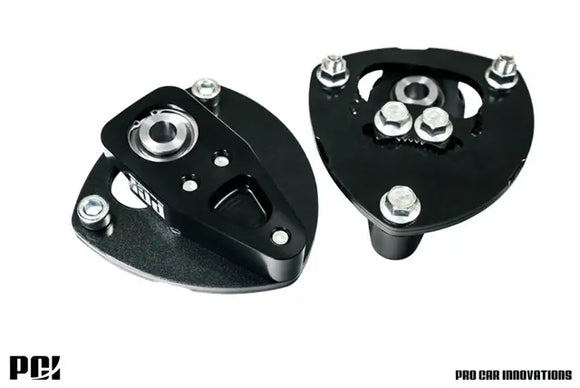

PCI 01-05 CIVIC/02-06 ACURA RSX OFFSET FRONT UPPER TOP HATS (12/14MM)

PCI-TH-RSX-F1

Description

**BACK IN STOCK 6-19-25 NEW REVISED VERSION**

Application: 02-06 DC5/RSX 01-05 CIVIC

**M12 AND M14 TOP STRUT NUT SPACERS INCLUDED**

ADJUSTABLE CAMBER PLUS CASTER SPHERICAL FRONT TOP HAT SET FOR 12MM AND 14MM STRUT SHAFT THREADS.

Our adjustable camber top hats have a fixed offset caster setting of plus 3 degrees over stock for increased positive caster.  (For installation, the shock tower will require a small cut out. *see pictures**) The kit will have a supplied bolt on steel template to easily and precisely make the modification. This will not weaken the tower or prevent the use of stock or other types of top hats.

CAMBER/CASTER SPECS:

Fixed caster: plus 3 degrees over stock

Adjustable camber: positive 1.5 degrees and negative 2.5 degrees over stock

*** MAX CAMBER OR CASTER NUMBERS WILL BE STOCK CAMBER OR CASTER NUMBERS PLUS THE ABOVE NUMBERS.***

**ALL MOUNTING HARDWARE WILL BE SUPPLIED. (M10X1.25 THREAD GRADE 10.9 ZINC PLATED HEX HEAD FLANGE BOLTS) NOT SHOWN IN PICTURES.

**MAY NOT FIT ALL STRUTS** The combined height of the spherical with the supplied top and bottom spacers is 1″ or 25.4mm. Your strut will need to have at least that plus enough extra thread to securely thread on and properly torque the nut. ***
