Racingline Oil Catch Can System - Audi / B9 / S4 / S5 / SQ5

Not all catch can kits are equal! RacingLine’s stunning Oil Catch Can System is designed exclusively for the Audi’s B9-platform S4, S5 & SQ5, plus other Audi models fitted with the 3.0 TFSI V6T (EA839) motor.

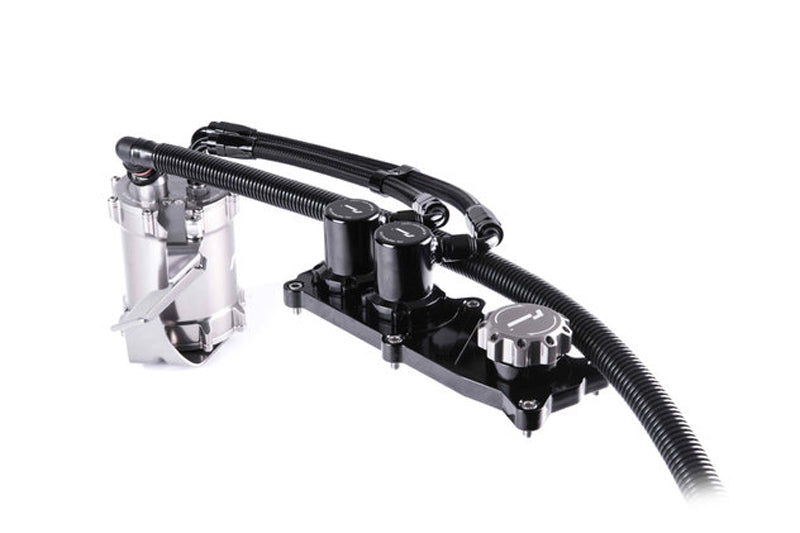

RacingLine’s V6T Catch Can System replaces the factory PCV with a gloss black billet PCV replacement block. This features two internally-baffled separator turrets and also deletes the failure-prone factory PCV check-valve. The new PCV block also incorporates a beautiful billet oil filler cap – not only pleasing to use, but ensures no more oil 'weeping' from the factory plastic cap.

The PCV block feeds to the Catch Can itself via two -6AN hose lines. These oil lines feature an attractive outer nylon braid strengthened by a stainless steel inner weave for maximum resilience.

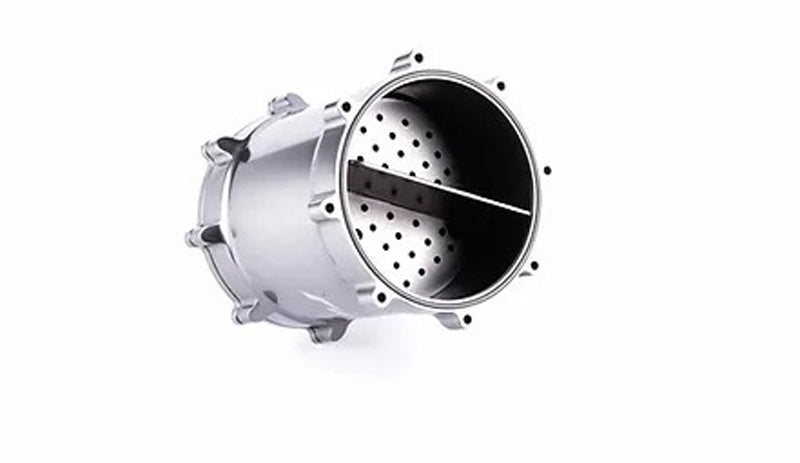

The Catch Can is constructed from extruded aerospace-grade 6061 aluminum, then CNC machined before being coated in a unique ‘Liquid Titanium’ anodized finish. The Can’s three-way baffled internals effectively collects excess moisture and oil vapor to keep your intercooler and inlet tracts free from long-term oil residue build-up.

For improved engine-efficiency, it ensures cleaner airflow through to the inlet manifold via the breather return hose, connected with a factory-spec ‘Norma’ quick release fitting.

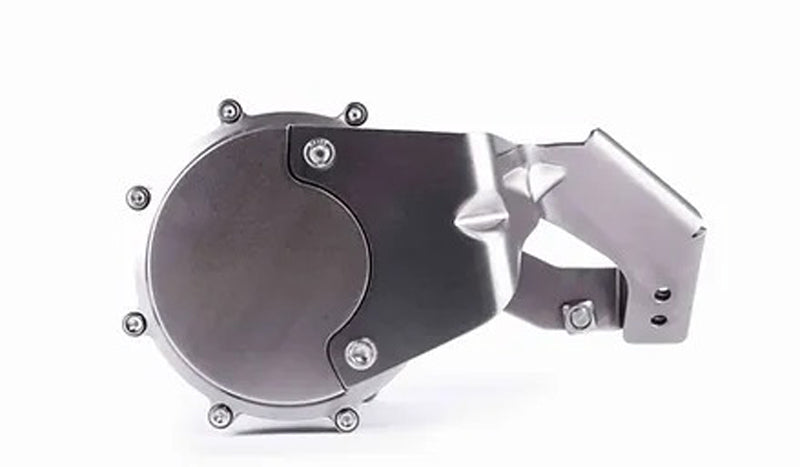

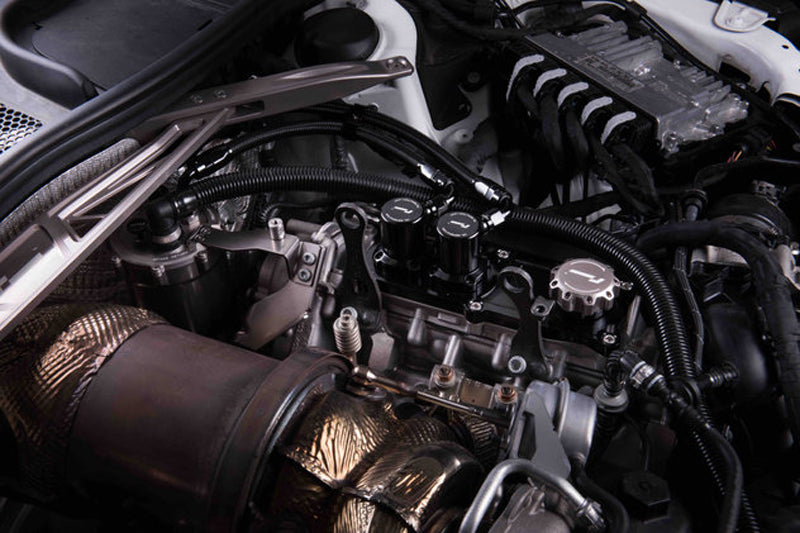

The beautiful Catch Can incorporates pressed-aluminum mountings to locate the can at the rear of engine, adding a great dose of style to your car’s engine bay appearance. It even includes an integrated mount point to retain the factory engine cover.

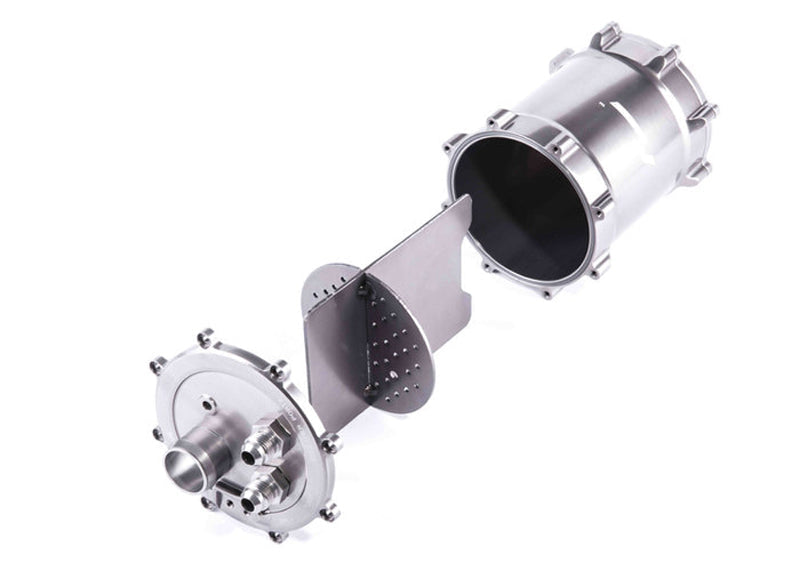

On top of the can is a dipstick for quick level-checking, and the can allows for easy disassembly for thorough cleaning throughout its life. Fitting is straightforward, and a full fixing kit containing all required bolts & O-Rings is included.

All this ensures that the RacingLine Catch Can System stands the test of time, retains its stunning looks, and most importantly keeps your engine & inlets tracts in the best possible long-term health.

So What's In The Kit?

• Replacement PCV breather plate with oil filler cap
• 2 x internally-baffled separator turrets
• Baffled catch tank & oil dipstick
• 2 x catch can mounting brackets

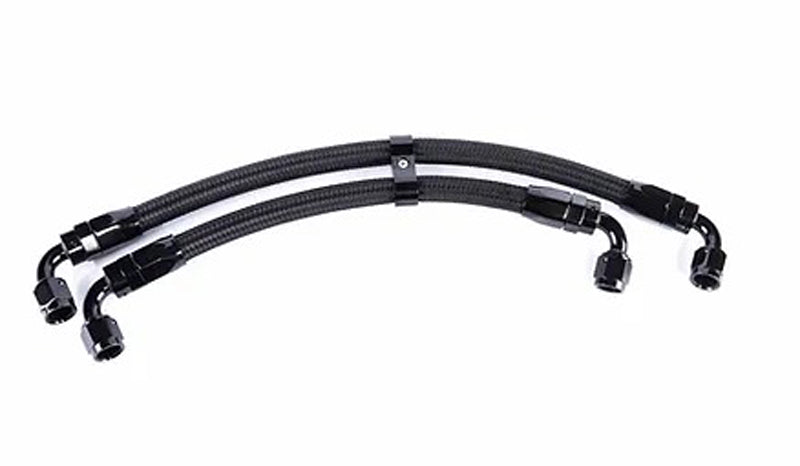

• 2 x -6AN hose from separator turrets to catch can
• Norma breather return hose from catch can to inlet
• Fixing kit containing all required bolts & O-Rings
