20-0063
This aluminum CNC machined fitting allows flexibility when plumbing a coolant or fuel system using multiple pumps or fuel rails. It features two -6AN ORB (9/16-18 thread) ports and two -8AN ORB (3/4-16 thread) ports. Approximately 4.5" long. The 6AN ORB ports are 2.85" apart (center to center). Fully anodized and resistance to all fuel types.
20-0063

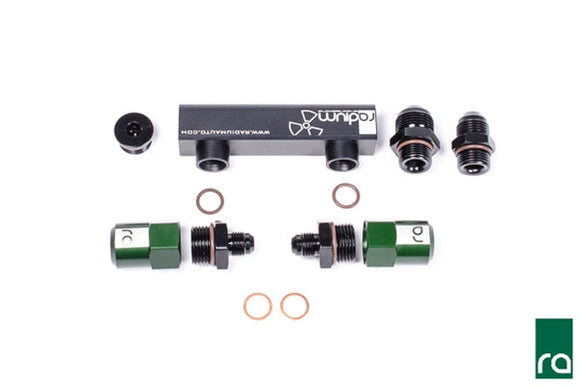

This allows flexibility when plumbing a fuel system using multiple Bosch pumps. NOTE: this kit eliminates the Bosch check valves. The pumps can NOT be staged.
4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
6AN ORB to M12x1.5 Male (x2)
M12 Crush Washer (x2)
