CATCH CAN KIT, EVO 8-9, CRANKCASE VTA

$361.73 CAD

Radium Engineering SKU: 20-0182

Earn [points_amount] when you buy this item.

20-0182

An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excess oil-saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.




EVO 8-9 Catch Can Kit Details

Radium Engineering offers several completely independent oil catch can kits for the Evo 8-9 that are sold individually or together using the menu above. All kits work with the OEM strut bar. The first type do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems route clean filtered air back in through the engine to be burned and to promote negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors into the cabin. The Crankcase VTA kit does not recirculate crankcase gasses back through the engine and is intended for race vehicles dealing with a large amount of blow-by gasses.

The Vent-To-Atmosphere Catch Can Kit (P/N 20-0182) is an open system used for high flowing, high horsepower applications. The closed system options listed above are adequate for most vehicles, however, some loosely built race engines operate with a large amount of boost pressure and the OEM hoses can become too restrictive from excessive blow by.

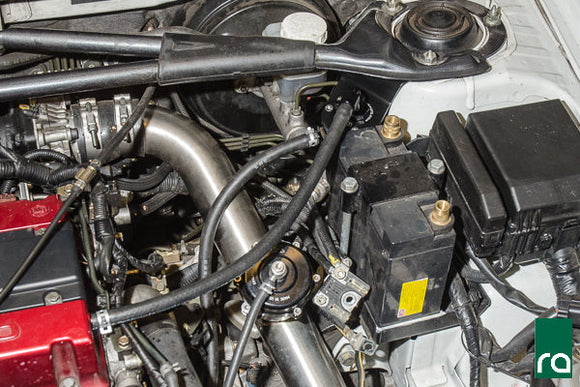

This VTA kit is intended to be used by itself as the only crankcase vent point. It replaces the stock PCV valve with a high flowing -10AN press-in valve cover fitting and 5/8" ID hose and allows the gasses to vent through the catch can to the atmosphere. This kit installs on the LH strut tower.
Because this kit mounts the catch can behind the battery, there is a chance that there might not be enough room for the included breather filter if a large battery is used. The small vent port at the end of the valve cover is plugged and not used.

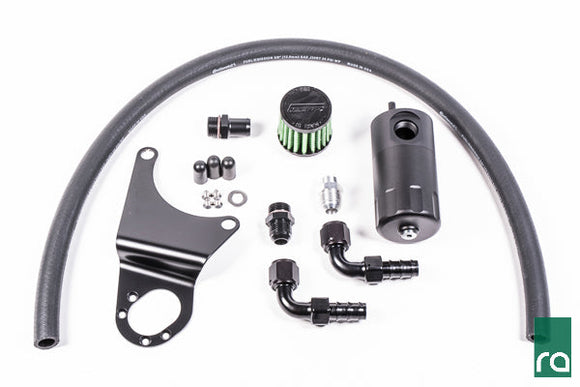

Contents of kit 20-0182 shown below:

The OEM valve cover is magnesium and cannot not be welded. Instead, the included -10AN male press-in fitting replaces the large PCV valve bushing. NOTE: this press-in fitting is NOT compatible with valve covers that came from outside the US market. More info HERE.

What is included in the 20-0182 Crankcase VTA Catch Can Kit:
-Billet oil catch can with integrated condenser and dipstick
-Laser cut powder coated LH mounting bracket
-Enough -10AN (5/8") black PCV hose for all applications
-Radium 14-0136 -10AN Hose End, 2pc 90deg for push-lok hose
-Radium 14-0213 -10AN Hose End, 90deg push-lok hose end
-Radium 20-0050 barb fitting with air filter breather
-Radium 14-0274 10AN male valve cover press-in fitting
-Vacuum caps for 3/8" barbs
-Stainless steel mounting hardware
