MANIFOLD, 4-PORT DW PUMPS

20-0188

This aluminum CNC machined fitting allows flexibility when plumbing a coolant or fuel system using multiple pumps or fuel rails. It features two -6AN ORB (9/16-18 thread) ports and two -8AN ORB (3/4-16 thread) ports. Approximately 4.5" long. The 6AN ORB ports are 2.85" apart (center to center). Fully anodized and resistance to all fuel types.

20-0188

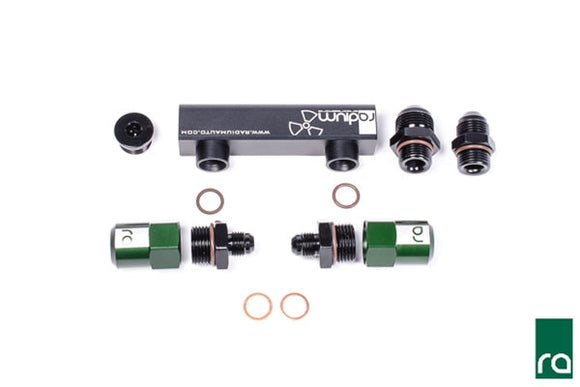

This allows flexibility when plumbing a fuel system using multiple Deatschwerks pumps. The dual kit for DW 350iL pumps includes the following black anodized fittings:

4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
8AN ORB to 6AN ORB (x2)
