Radium Engineering Direct Mount Fill Neck And Cap Vented

20-0197-V

The Radium Engineering fuel cell fill kits can be used on any cell that uses a 6-bolt 2.18" (55mm) bolt circle mounting flange. This bolt pattern is used on all Radium Engineering Fuel Cell Surge Tanks. Screw threads are the industry standard 1/4"-28.

See this blog article for more information on fuel cell filling.

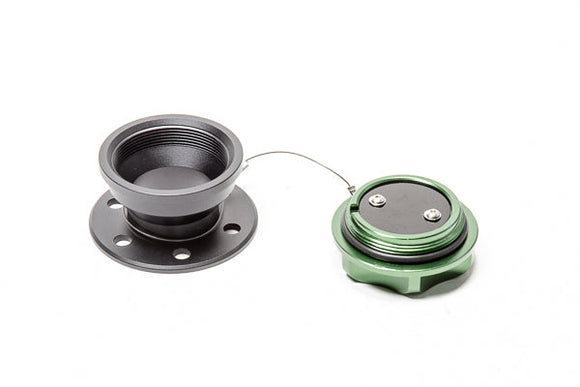

20-0197-V Direct Mount Fill Neck and Cap

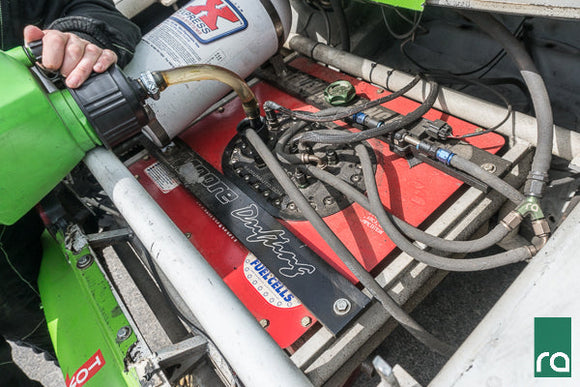

The 20-0197-V Direct Mount Fill Neck and Cap is perfect for filling directly into the fuel cell, as shown. This kit uses the 20-0148-V Fill Neck Cap (included) so filling is quick and simple.

Included:
-Machined and Anodized Aluminum Fill Neck
-Anodized and Laser Etched Aluminum Cap
-Viton Gasket Flange Seal
-Viton O-ring Cap Seal
-Stainless Steel Hardware
