CATCH CAN KIT, GM TRUCK

20-0233

This installation kit was specifically designed for the 1999-2007 GM trucks/SUVs with Vortec V8 gasoline engines. There is no drilling or permanent modifications required.

Features:
-Effectively raises the octane and increased engine performance from cleaner inlet air
-Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
-Excessive oil collection can be an indicator of a damaged engine.
-Lowers hydrocarbon emissions
-Capacity: 6 fluid ounces
-Height (without fittings): 5 inches
-Outside Diameter: 2.45 inches

GM TRUCK CATCH CAN KIT
The GM Truck catch can kit includes everything needed for a complete installation. The catch can is plumbed in-line with the PCV tube and draws out oil and water condensation from the PCV gasses that would otherwise be drawn into the intake manifold. Furthermore, the closed system prevents unwanted oil vapors from entering into the cabin. The custom bracket mounts to the firewall near the brake booster. Make sure your vehicle has the necessary mounting studs on the firewall before ordering. Consult the Installation Instructions link above for more details.

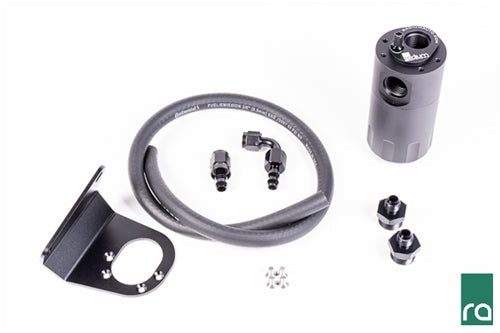

Kit Includes:
-Radium billet oil catch can with integrated condenser and dipstick
-Radium GM-specific mounting bracket
-Black anodized aluminum 6AN hose ends
-Anodized 6AN adapter fittings
-Stainless steel mounting hardware
-3/8" PCV rubber hose
