Radium Engineering 13-14 Ford Shelby GT500 Coolant Tank Kit

20-0293

These kits are for the Ford Mustang GT, EcoBoost, V6, Shelby GT350, and Shelby GT500. It is designed to replace the plastic coolant tank found at the front of the engine bay.
The Radium Engineering coolant expansion tank is CNC machined from aluminum and consists of two halves that are bolted together.

The low-profile design allows extra room in the engine bay for aftermarket forced induction or other modifications. The internal design features two chambers that are NOT isolated from each other. There are cross-over passages at the top and bottom.  The Radium Engineering coolant header tank also has an internal swirl feature, which is to help aid in deaerating the system. For more details on the coolant tank, click HERE.

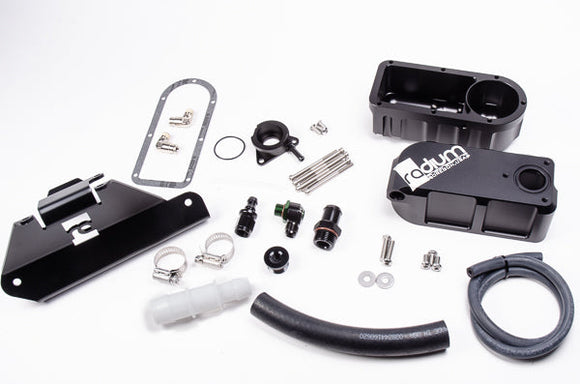

Included
-Billet Aluminum Coolant Tank
-Anodized Aluminum Mounting Bracket
-Stainless Steel Hardware
-Adapter Fittings
-Reaplcement Heater Hose
-Overflow Hose, 7/32"
*PRESSURE CAP SOLD SEPARATELY*

Pressure Cap
The OEM Pressure Cap cannot be reused. Below are the pressure ratings from Ford.
Mustang, S550: 1.45 Bar (21 psi)
Mustang, S197: 1.10 Bar (16 psi)
Shelby GT500: 1.10 Bar (16 psi)

The optional Radium Engineering pressure caps (sold separately) are manufactured from black electroplate stainless steel with a race proven high pressure valve. An increase pressure relief cap provides a boiling point increase permitting improved cooling efficiency. This is necessary when tracking the vehicle in extreme conditions. For more information, go HERE.
