Radium Fuel Fill Neck Hose Kit 1.5in Clear

Multiple types of fuel hose for body mounted fillers.

Internal hose diameters are 1.5" making it ideal for many applications including the options here. For universal applications, these filler hoses are 36" (0.9m) long that can be cut to length.

All filler hoses include two 304 Stainless Steel T-Bolt clamps (shown above) that feature a protective smooth inside and permits a 360 degree seal.

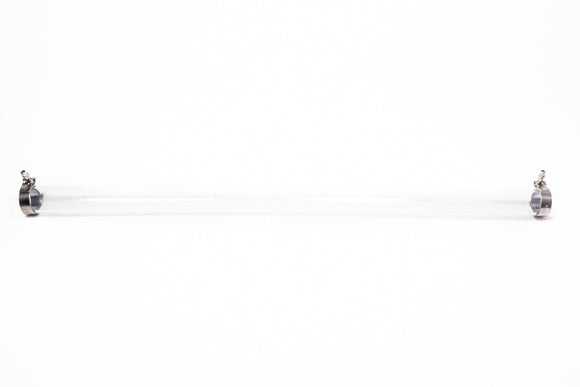

20-0602 Fuel Fill Neck Hose Kit, 1.5in, Clear
This fill hose is perfect for applications that need a visualization of the fuel dynamically filling. Depending on the fuel type used, the clear hose may become cloudy and translucent overtime. Unlike the black reinforced filler hose, this clear hose should be inspected occasionally and replaced if needed.

20-0602 HOSE SPECIFICATIONS
Inside Diameter: 1.5" (38mm) ID
Wall Thickness: 0.2" (5mm)
Length: 3 feet (914mm)
Max Pressure: 20-psi @ 72F
Bend Radius: 8" minimum
Temperature: -20F to 160F
Durometer: 60A
