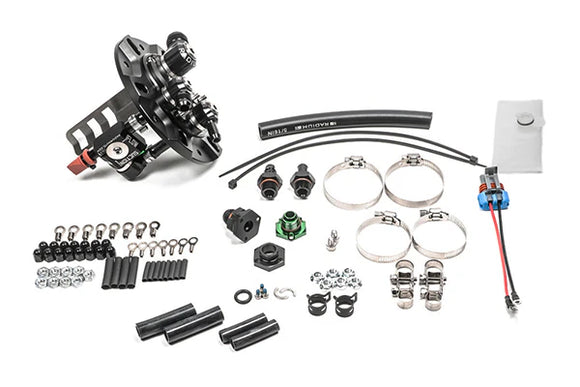

Radium Engineering Mitsubishi Evo 1-6 Fuel Pump Hanger (Pump Not Included)

20-1330

20-1330 Fuel Pump Hanger, Mitsubishi EVO 1-6

COMPATIBILITY

• Mitsubishi Evo I
• Mitsubishi Evo II
• Mitsubishi Evo III
• Mitsubishi Evo IV
• Mitsubishi Evo V
• Mitsubishi Evo VI


FUEL PUMP COMPATIBILITY

• AEM 50-1220
• Walbro F90000267
• Walbro F90000274
• Walbro F90000285
• Walbro F90000295
• Protec 11928 (brushless)
• Fuelab 49614 (brushless)
• Deatschwerks DW400
• Deatschwerks DW440 (brushless)
• Deatschwerks DW810 (brushless)

FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. A low profile 8AN male fitting is provided.

The fuel return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. A low profile 6AN male adapter is provided.

All fittings are machined low enough to clear the surrounding area.

FUEL STARVATION PROTECTION

The OEM fuel tank has a built-in collector bowl. It has a labyrinth that prevents fuel from escaping during aggressive driving. The collector bowl is constantly replenished with fuel from both the pressure regulator and the crossover hose.

The crossover hose pulls from from the passive side of the saddle tank and is driven by the PRV venturi jet pump.

ELECTRICAL

The custom designed stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. They have an anti-rotation feature that prevents the terminals from spinning. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

NOTES

• Installations can re-use the OEM fuel pump wiring.
• It is recommended to upgrade OEM wiring to ensure the pump is receiving full power and operating at maximum potential.
• Universal fuel pump wiring kits can be found HERE.

FEATURES

• Simple Drop-In Installation
• Aluminum and Stainless Construction
• Compatible with Various Pumps
• Brushless Fuel Pump Capable
• Anti-Rotation Electrical Terminals
• High Current Electrical Hardware
• Gas, Methanol, and E85 Compliant
