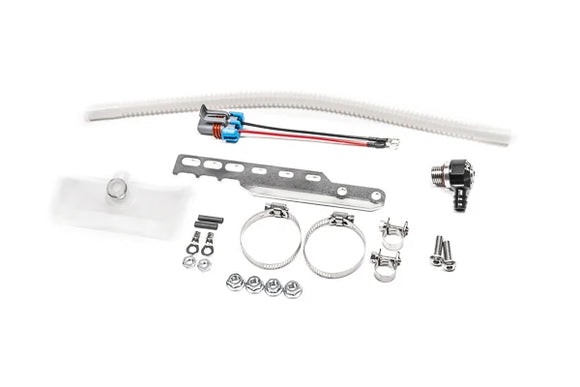

Radium Engineering 90-93 Acura Integra/88-91 Honda Civic CRX Dual Pump Add-On (F90000267/274/285)

20-1797

COMPATIBILITY

• 90-93 Acura Integra (All models/trims/RHD/LHD)
• 88-91 Honda Civic (All models/trims/RHD/LHD)
• 88-91 Honda CR-X (All models/trims/RHD/LHD)

20-1797 Dual Pump Add-On Fits Walbro F90000267/274/285

This kit can be used to install a second brushed pump to your hanger. Part number 20-1790 is required to use this add-on. If a brushless pump was installed, a dual pump add-on can NOT be used due to the extra brushless controller wires.

The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult.

An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves with the following pumps, staging is permitted.

PUMP COMPATIBILITY

• Walbro F90000267⁽²⁾
• Walbro F90000274⁽²⁾
• Walbro F90000285⁽²⁾
• Walbro F90000295⁽²⁾⁽³⁾

⁽²⁾Sock filters are included in this kit for these pumps.
⁽³⁾These pumps do NOT feature a check valve.

FEATURES

• Gasoline, Methanol, and E85 Compliant
• Compatible with Various Pumps
• Included Fuel Pump Filter Sock
• Plug and Play Installation
• Bolt-On Stainless Pump Bracket
