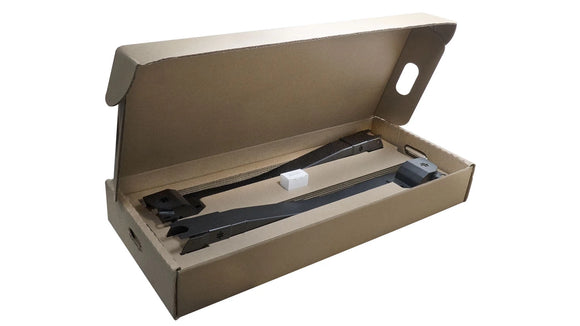

Ridetech 67-69 Camaro Bolt-In Subframe Connectors

11167300 The Ridetech subframe connectors for 1967, 1968, and 1969 Camaro / Firebird add rigidity to your vintage F-Body chassis and improve performance by reducing chassis flex.
Modern tires and aftermarket suspension components are pushing the limits of OEM chassis designs – particularly the popular GM F-Body platform. Ridetech’s subframe connectors offer a simple bolt-on improvement that significantly increase the performance of the OEM chassis and dramatically transforms the handling and ride quality of your first gen Camaro or Firebird.
Note: Coupe only – does not fit a convertible.
Fabricated from 1.5 in. x 3 in. x .125 wall steel for high strength
The rear of the subframe connector mounts solidly into three existing floor pan bolt locations for maximum strength and completely replaces the original leaf spring pocket
The front of the subframe connector bolts through the original subframe and is captured by the body bushing as well to enhance rigidity
No fabrication required, direct bolt-on
Durable powder coated finish for long-lasting, high-quality, appearance
Includes hardware
11167300.pdf
67-69 F-Body Subframe Connector Instructions
Download File
Suspension Location
Front, Front and Rear, Rear
Suspension Type
Air Suspension, Coil-Over Suspension, StreetGrip – Stock Upgrade
Year
1967, 1968, 1969
Make
Chevrolet, Pontiac
Model
Camaro, Firebird
