Ridetech 64-67 GM A-Body TQ Series CoilOvers Front Pair

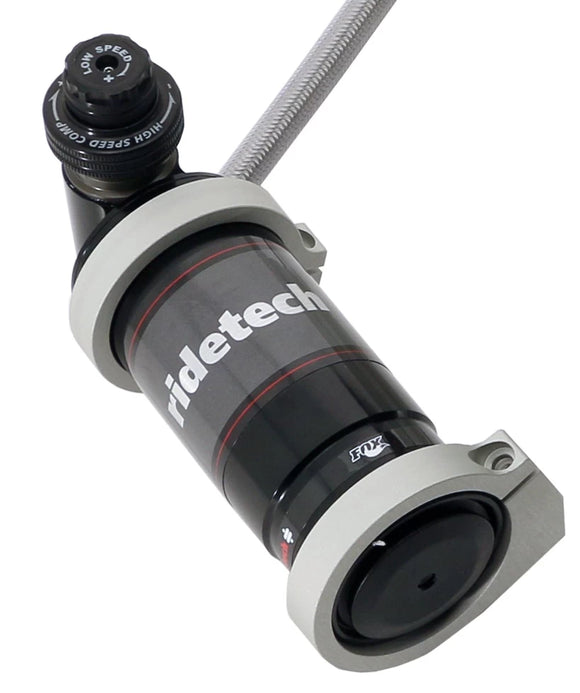

11233511 TQ Series CoilOvers give your 1964-1967 A-Body competition-grade handling with dual compression adjustment and rebound adjustment for precise tuning. Remote reservoirs provide consistent fluid temps in all environments as well as easier access to low and high speed compression tuning knobs. TQ “Track Quality” Series provides a single rebound adjustment combined with dual stage – high speed and low speed – compression adjustment. The high speed adjustment feature allows tuning of instances that might induce a high speed excursion of the piston rod including rapid changes in suspension loading. Examples include quick directional transitions in autocross competition as well as impact harshness typically found during street driving such as pot holes, speed bumps, and other road irregularities. Low speed adjustment allows tuning of ride quality, as well as the general cornering characteristics of typical road course and winding road use. TQ Series CoilOvers are the ultimate choice for autocross, track days, drag racing and other extreme use.
With a large 1.834″ piston, heavy duty 5/8″ shaft, and impact forged bodies, TQ Series CoilOvers are built to perform and built to last. They’re backed by our exclusive 1,000,001 mile warranty. RideTech develops our shock calibrations and spring rates through thousands of cross-country test miles, on our exclusive test track and at competition events from coast to coast. We understand the suspension needs of your Chevelle, GTO, 442, Malibu, Cutlass, Lemans, Tempest or El Camino better than any other company. This CoilOver system includes two triple adjustable TQ Series CoilOver shocks with remote reservoirs on a 30″ braided line and two Hyperco coil springs with proper spring rate.
NOTES:
— This product requires RideTech StrongArms for proper installation.
11233511_FOX.pdf
Triple Adjustable Front CoilOver Instructions
Download File
19-shock-tuning-guide.pdf
Shock Tuning Guide
Download File
CoilOver_Instructions.pdf
Coil-Over Instructions
Download File
TQ_Intake_Sheet.pdf
TQ Intake Sheet
Download File
Suspension Location
Front
Suspension Type
Coil-Over Suspension
Year
1964, 1965, 1966
Make
Buick, Chevrolet, Oldsmobile, Pontiac
Model
442, Chevelle, Cutlass, Cutlass Supreme, El Camino, F85, Grand National, GTO, Lemans, Malibu, Skylark, Special, Sportwagon, Tempest, Vista Cruiser
