Ridetech 65-70 Impala MUSCLEbar with Posi-Links Rear

11289102 The fourth generation Impala 1965-70 seen its first perimeter chassis in 1965 which helped with the body roll the earlier generations were born with. since then everything has changed roads, power plants, tires, speed limits, etc. Adding a rear swaybar drastically improves road feel and drivability of these cars.
Ridetech has upgraded the traditional notion of sway bars with the new MuscleBar™. Using precision CNC tubing benders, performance end links, billet aluminum mounts and low friction bushings, Ridetech can now produce sway bars with unheard of dimensional and rate accuracy.
FEATURES
Precision CNC bent tubing for accurate and repeatable fitment
Exact Bar Rates Included with each bar – no guesses as to bar rate

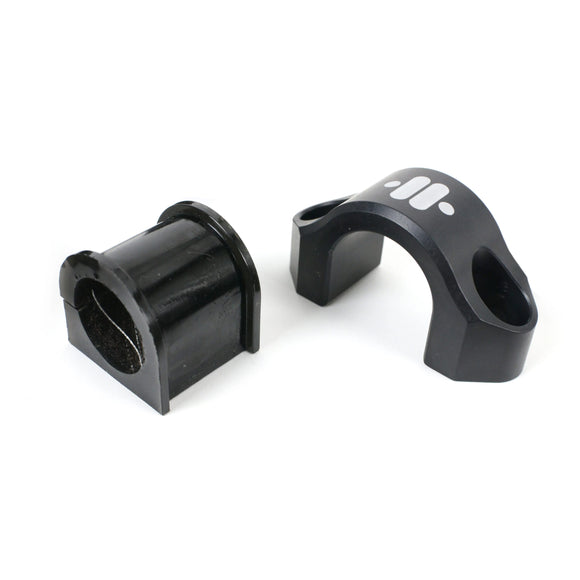

Billet aluminum mounts, anodized black.
Low friction frame bushings allow easy and predictable rotation over the stiction of polyurethane or rubber.
Easy to install spherical end links.
Adjustable Rate, aluminum clamp slides fore & aft on bar for infinite adjustment
Includes brackets for both 1965-66 and 1967-70
SPECS
Rate= 177lbs / 199lbs / 255lbs * these rates are measured 1″ apart starting at end of bar.
Diameter= 1″
Wall Thickness= .125″
11289102_REV2.pdf
Rear MuscleBar Instructions
Download File
Suspension Location
Rear
Make
Chevrolet
Model
Bel Air, Biscayne, Caprice, Impala
Suspension Type
Air Suspension, Coil-Over Suspension
