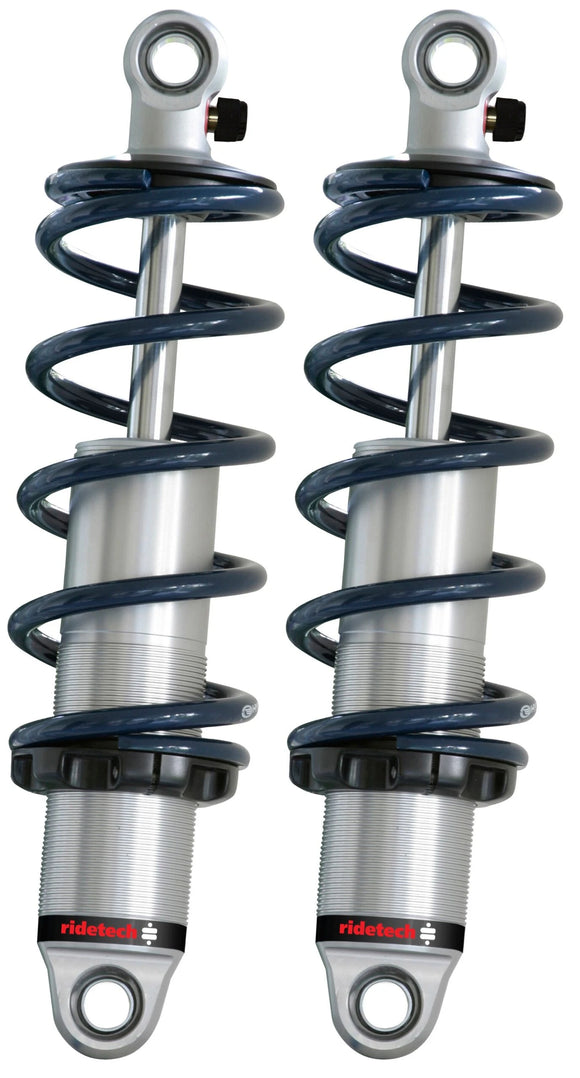

Ridetech 63-72 Chevy C10 Front CoilOver System HQ Series

11333510 For use with a Ridetech Control Arms
This Coil-Over system is designed to provide the optimal ride quality and ease of installation for Ridetech Bolt-On 4-Link systems.
RideTech continues to offer today’s hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new RideTech Coil-Overs.
Anodized finish protects against corrosion
Available in several shock valving adjustment configurations
CNC machined billet hardware
Unique pinch clamp height adjuster uses finer thread for easy adjustment
Includes 1/2″ bore x 1″kevlar lined bearings for noise free operation
RideTech 2 1/2″ Coil-Over springs
built in Indiana by HyperCo:
High tensile premium steel CNC cold wound, less weight, more resistant to bowing, increased travel with durable powered coated finish
Monotube gas pressure design offers superior fade free performance
Impact forged aluminum body provides superior strength and reliable service
Larger 1.834” piston provides outstanding ride quality
Double sealed rod guide with dust cover eliminates oil leakage
5/8″ chrome shock shaft
RideTech Aluminum Mono Tube Shocks
Great Performance
Mono-tube construction sets this coil-over shock apart – it means consistent performance and great ride quality
11333510.pdf
Single Adjustable Front Coil-Over Instructions
Download File
19-shock-tuning-guide.pdf
Shock Tuning Guide
Download File
Suspension Location
Front
Suspension Type
Coil-Over Suspension
