Ridetech 99-06 Silverado Sierra 1500 Bolt-On Wishbone Suspension System

11387199 The Bolt-On Rear 4-Link System for 1999-2006 Silverado/Sierra 1500 2WD replaces the leaf springs to provide excellent ride quality, handling, traction and load capacity. It is completely bolt-on and provides mounting for Shockwaves or Coil-Overs. The panhard is adjustable so you can maximize tire clearance at the new lowered height and the mount has been located to optimize the bar length and angle for the lowered height. This helps keep the rearend centered in the truck and lowers the roll center to minimize body roll. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack! The heavy-duty C-notches are included with the kit and FIT the frame rail. Compatible with all cab and bed configurations.
Features:
Made in the USA
Bolt-on installation

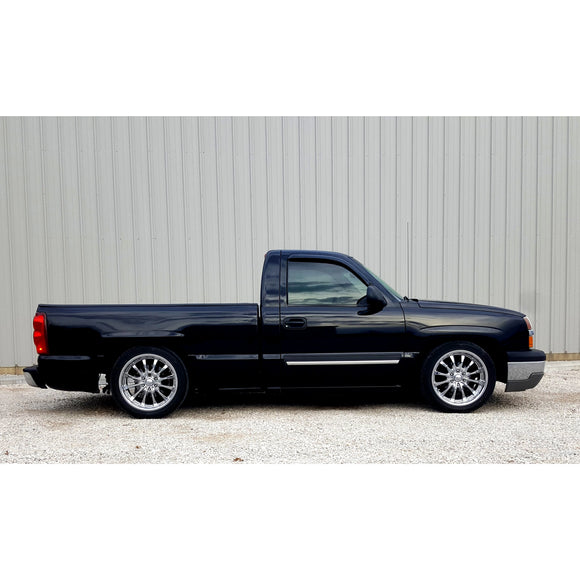

Lower ride height approximately 6″ (additional 3″ with air suspension)
Eliminated spring wrap / wheel hop
Increased compression travel with heavy-duty c-notch
Durable satin black powder coat
Optimized roll center height for confident cornering
Adjustable panhard bar with R-Joint rod ends
Correct pinion angle to eliminate driveline vibration
Designed for use with Coil-Overs or ShockWave air suspension (sold separately)
11387199_1.pdf
Bolt-on 4 Link System Instructions
Download File
11387199_TEMPLATE_PRINTABLE.pdf
C-Notch Template
Download File
Suspension Location
Rear
Suspension Type
Air Suspension, Coil-Over Suspension
Year
1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
Make
Chevrolet, GMC
Model
Sierra 1500, Silverado 1500
