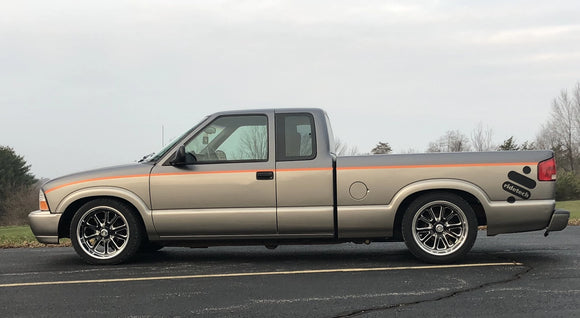

Ridetech 82-03 Chevy S10 and S15 Bolt-On Wishbone Rear Suspension System

11397199 Chevrolet S-10, S-15 and GMC Sonoma 2WD pickup trucks greatly benefit from lowered ride height and improved ride quality. These trucks are plentiful, affordable and can easily be upgraded to V8 engines with great power to weight ratio. This bolt-on Wishbone rear suspension system eliminates your truck’s factory leaf springs and replaces them with a heavy-duty wishbone style system that includes Ridetech’s long lasting R-Joints for smooth, bind-free articulation. Overall, you’ll be thoroughly impressed with how well your truck handles, rides and looks. Includes lower bars, wishbone, mounting brackets, crossmembers & hardware. For use with Coil-overs or Shockwaves (Sold separately).
Designed for use with the stock 7.5″ or 8.5″ rear end. Choose option above.
Features:
Made in the USA
Bolt-on installation
Lower ride height approximately 4-5″ (additional 3″ with air suspension)
Eliminated spring wrap / wheel hop (50% anti-squat)
Durable satin black powder coat
Optimized roll center height for confident cornering
Patented R-Joint rod ends
Correct pinion angle to eliminate driveline vibration
Designed for use with Coil-Overs or ShockWave air suspension (sold separately)
Optional gas tank crossmember brace kit available for V8 swapped trucks (part # 11397299)
Note: This system does not fit S10/S15 Blazer
11397198_11397199.pdf
Bolt-on Rear Wishbone System Instructions
Download File
Rear End
7.5" Ring Gear (Most Common), 8.5" Ring Gear
Suspension Location
Rear
Suspension Type
Air Suspension, Coil-Over Suspension
Year
1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
Make
Chevrolet, GMC
Model
S10 Pickup, S15 Pickup, Sonoma
