Ridetech 64-66 Ford Mustang TQ Series CoilOvers Front Pair use with StrongArms

12093511 TQ Series CoilOvers give your 1964-1966 Mustang competition-grade handling with dual compression adjustment and rebound adjustment for precise tuning. Remote reservoirs provide consistent fluid temps in all environments, as well as easier access to compression tuning knobs. TQ “Track Quality” Series provides single rebound adjustment combined with dual stage – high speed and low speed – compression adjustment. The high speed adjustment feature allows tuning of instances that might induce a high speed excursion of the piston rod. This includes rapid changes in suspension loading such as quick directional transitions in autocross competition. The high speed adjustment also allows fine tuning for impact harshness typically found during street driving such as pot holes, speed bumps, and other road irregularities. Low speed adjustment allows tuning of ride quality, as well as the general cornering characteristics of typical road course and winding road cornering use. TQ Series Coil-Overs are the ultimate choice for autocross, track days, drag racing and other extreme use.

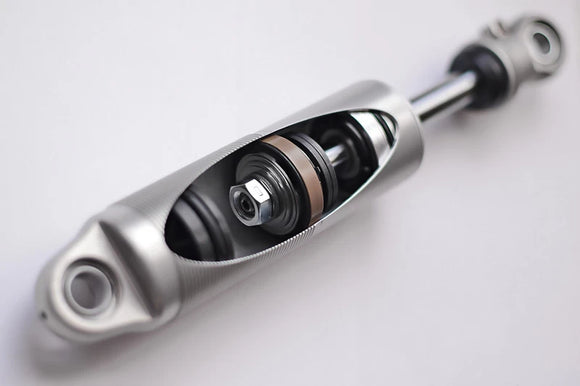

With a large 1.834″ piston, heavy duty 5/8″ shaft, and impact forged bodies, TQ Series CoilOvers are built to perform and built to last. They’re backed by our exclusive 1,000,001 mile warranty. RideTech develops our shock calibrations and spring rates through thousands of cross-country test miles, on our exclusive test track and at competition events from coast to coast. We understand the suspension needs of your Mustang better than any other company. This CoilOver system includes two triple adjustable TQ Series CoilOver shocks with remote reservoirs on a 30″ braided line and two Hyperco coil springs with proper spring rate.
NOTE:
— A RideTech Suspension Specialist with contact you to discuss your setup prior to shipping.
12093511_FOX.pdf
Installation Instructions
Download File
19-shock-tuning-guide.pdf
Adjustable Shock Tuning Guide
Download File
TQ_Intake_Sheet.pdf
TQ Intake Sheet
Download File
Suspension Location
Front
Suspension Type
Coil-Over Suspension
Year
1964, 1965, 1966
Make
Ford
Model
Mustang
