Ridetech 94-04 Ford Mustang HQ Series CoilOver System

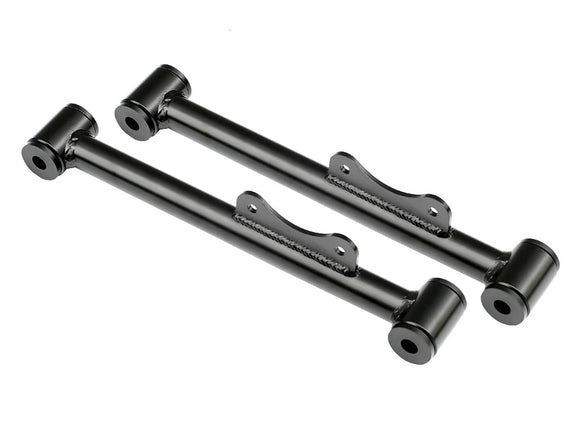

12140210 The LEVEL 2 system provides adjustable rebound tuning with our front & rear HQ CoilOvers. The System Includes: 2 Coil-Over Front Struts, 2 Coil-Over Rear Shocks & 4 Springs, with proper spring rate, rear upper and lower StrongArms, and all mounting brackets and hardware.
Front:
PERFORMANCE MONO-TUBE STRUT
Not just a replacement strut… The new Ridetech performance struts are designed with handling performance and ride quality in mind.
Features:
22 position rebound adjustments for ultimate ride control
Steel Mono-Tube strut design
Oversized rod guides for maximum strength and durability
Extruded aluminum clamp mount
Nitro carburized finish for a lasting durability
Billet upper mounting bracket with built in camber/caster adjustment.
Integrated thrust bearing
Includes Hyperco Springs (made with high tensile steel)
Delrin spring washers for easy spring retainer adjustment.
Rear:
RideTech CoilOvers
Anodized finish protects against corrosion
Available as fixed valve or rebound single adjustable
CNC machined billet hardware
Unique pinch clamp height adjuster uses finer thread for easy adjustment
Includes 1/2″ bore x 1″ Kevlar lined bearings for noise free operation
RideTech 2 1/2″ coil over springs
built in Indiana by HyperCo:
High tensile premium steel CNC cold wound, less weight, more resistant to bowing, increased travel with durable powered coated finish
Monotube gas pressure design offers superior fade free performance
Impact forged aluminum body provides superior strength and reliable service
Larger 1.834″ piston provides outstanding ride quality
Double sealed rod guide with dust cover eliminates oil leakage
5/8″ chrome shock shaft
RideTech Aluminum Mono Tube Shocks
Great Performance
Mono-tube construction sets this coil-over shock apart – it means consistent performance and great ride quality
12140210_WEB.pdf
Installation Instructions
Download File
19-shock-tuning-guide.pdf
Adjustable Shock Tuning Guide
Download File
CoilOver_Instructions.pdf
Assembly Instructions
Download File
Suspension Location
Front and Rear
Suspension Type
Coil-Over Suspension
Year
1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Make
Ford
Model
Mustang
