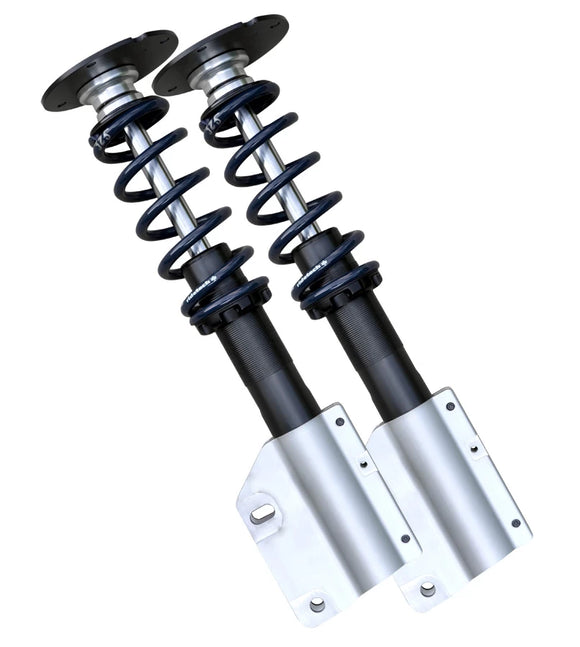

Ridetech 05-14 Ford Mustang CoilOver System HQ Series Front

12153110 PERFORMANCE MONO-TUBE STRUT
Not just a replacement strut… The new RideTech performance struts are designed with handling performance and ride quality in mind.
Features:
Steel Mono-Tube strut design
Oversized rod guides for maximum strength and durability
Extruded aluminum clamp mount with integrated stainless brake line, abs for bolt on installation
Nitro carburized finish for a lasting durability
Integerated thrust bearing
Includes Hyperco Springs (made with high tensile steel)
Delrin spring washers for easy spring retainer adjustment.
Available in (single adjustable HQ) (triple adjustable TQ)
RideTech Coil-Overs
The System Includes: 2 Coil-Over Shocks + 2 Springs, with proper spring rate
RideTech continues to offer today’s hot rodders the ultimate in ride quality, handling performance, technical support, and now, SIMPLICITY, with the new RideTech Coil-Overs.
Anodized finish protects against corrosion
Rebound single adjustable
CNC machinedbillet hardware
Unique pinch clamp height adjuster uses finer thread for easy adjustment
Includes 1/2″ bore x 1″ kevlar lined bearings for noise free operation
RideTech 2 1/2″ coil over springs
built in Indiana by HyperCo:
High tensile premium steel CNC cold wound, less weight, more resistant to bowing, increased travel with durable powered coated finish
Monotube gas pressure design offers superior fade free performance
Impact forged aluminum body provides superior strength and reliable service
Larger 1.834″ piston provides outstanding ride quality
Double sealed rod guide with dust cover eliminates oil leakage
5/8″ chrome shock shaft
RideTech Aluminum MonoTube Shocks
Great Performance
Mono-tube construction sets this coil-over shock apart – it means consistent performance and great ride quality
12153110.pdf
Installation Instructions
Download File
19-shock-tuning-guide.pdf
Adjustable Shock Tuning Guide
Download File
Suspension Location
Front
Suspension Type
Coil-Over Suspension
Year
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
Make
Ford
Model
Mustang
