Ridetech 15-24 Ford Mustang HQ Series Air Suspension System

12270297 Product Description: Ridetech HQ Series S550/S650 Mustang Air Suspension Systems (ShockWave + CoolRide) are the latest to hit the market for the popular Blue Oval muscle car. While the car still bears the ‘Mustang’ name, Ford has evolved the persona of the traditional pony car over the S550 & S650 generations to assume a more capable grand tourer role. As such the car has adopted an independent rear suspension layout and enjoys more capable sports-car like handling. That said, there is always room left on the table for improvement with factory muscle, and Ridetech’s adjustable air ride suspension allows for an aggressive yet functional stance and improved handling performance without sacrificing ride quality or comfort.
Ridetech’s latest air ride system is sporting a fresh new look, featuring a black and gray anodized finish that pairs nicely the rest of the hardware. Also, 24-position rebound adjustable HQ series Shockwaves with Fox Factory valving and internals allows fine-tuning of suspension responsiveness, whether the car is put to use on the 1320, on the autocross, or road course use.
Additionally, these systems benefit from a new rubber lined spherical bearing integrated into the camber/caster plates, noticeably reducing the NVH that is commonly associated with performance suspensions. Together with the Fox valving and rebound adjustability, Ridetech’s latest design is yet another way that this air suspension system extends the performance capabilities of the S550/S650 Mustang without sacrificing ride quality
Equally important when upgrading suspension components are the sway bars. Performance air ride suspension is great but if you’re after a comprehensive approach to improving the performance of your S550 or S650 Mustang, those can be found below.
Front Sway Bar
Rear Sway Bar
System Features & Benefits:
Fox Factory shock internals and valving along with monotube design provide excellent ride quality and handling
Anodized gunmetal black and gray finish provides great looks and long lasting finish
Improved range of Camber & Caster for performance driving alignments:
Caster Range: +7.5 to +8.5 degrees
Camber Range: -2.5 to +.25 degrees
Camber Range Extreme (Slug Flipped): -1.0 to -4.25 degrees
Impact forged aluminum shock body provides an excellent strength-to-weight ratio
Allows 1.5”-2.5” drop in ride height from stock to improve vehicle center of gravity and reduce wheel-to-tire gap
Fully deflated will net an additional 2″-3″ drop
24-position rebound adjustable HQ Series Shockwaves allow ride quality and suspension responsiveness adjustability
Made in the USA | Premium design, premium components, industry leading performance

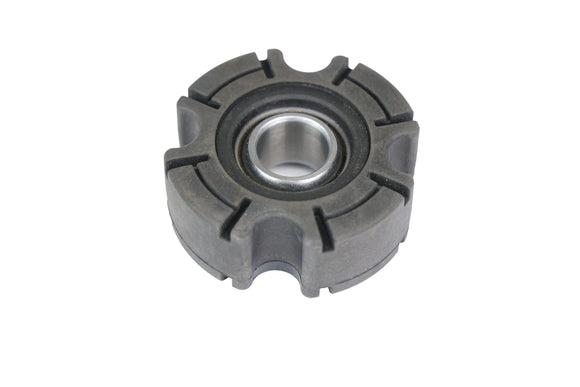

Rubber isolated spherical bearing minimizes NVH noises commonly associated with performance suspension
Tunable pressures based on vehicle use: street performance, drag, road course, autocross
Application specific mounting for a seamless installation
Bolt-on installation. No irreversible modifications necessary
Ridetech’s standard 1,000,001 Mile Warranty
Triple Adjustable Shockwaves options coming soon.
Fitment:
2015-2024 | HQ Series S550/S650 Mustang Air Suspension System are compatible with four, six, and eight cylinder models.
Cars equipped with factory electronic shock systems require an ‘Electronic Shock Simulator’ kit from Shock Delete Engineering.
Does not fit 2024-up cars with electronic shocks.
Negative camber settings of more than -1 degree will require Ridetech front sway bar.
