12302401 The Shockwave is the perfect design for replacing the front coil spring and shock. Inside the Firestone air spring is a rebound adjustable Fox mono-tube shock. Combing these two components into one solution prevents the need to relocate the shock!
Features:
Application specific mounting brackets. No cutting, no welding, no fabrication, easy installation.
HQ Series shocks are manufactured by Fox and are rebound adjustable allowing them to be tuned to the ride quality and handling you want. They are a Mono-tube design with an aluminum body and carry a 1,000,001 Mile Warranty
Durable Firestone air springs provide height adjustability and a premium ride quality.

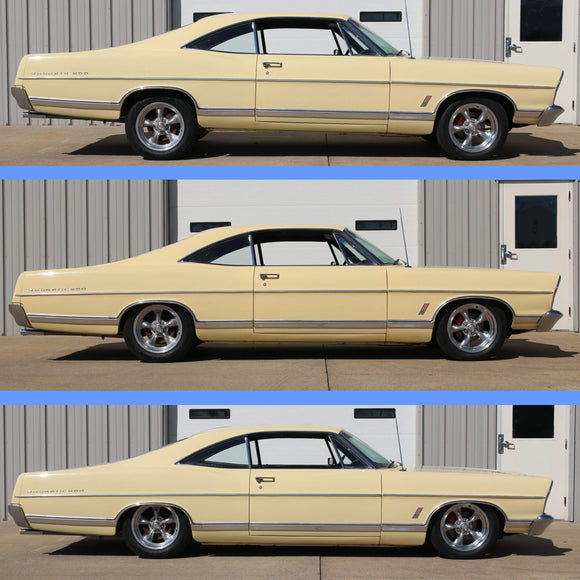

Fender Lip to Ground Dimensions on 1967 Galaxie
Tire Sizes – Front 215/60/17 (27.1″) – Rear 225/60/17 (27.6″)
Deflated – Front 24″ – Rear 24.5″
Ride Height – Front 27″ – Rear 27.5″
Fully Inflated – Front 28.25″ – Rear 30.5″
12302401.pdf
Install Instructions
Download File
Suspension Type
Air Suspension
Suspension Location
Front
