Ridetech HQ Series Shock Single Adjustable 4.75in Stroke T-Bar/Stud Mounting 8.55in x 13.3in

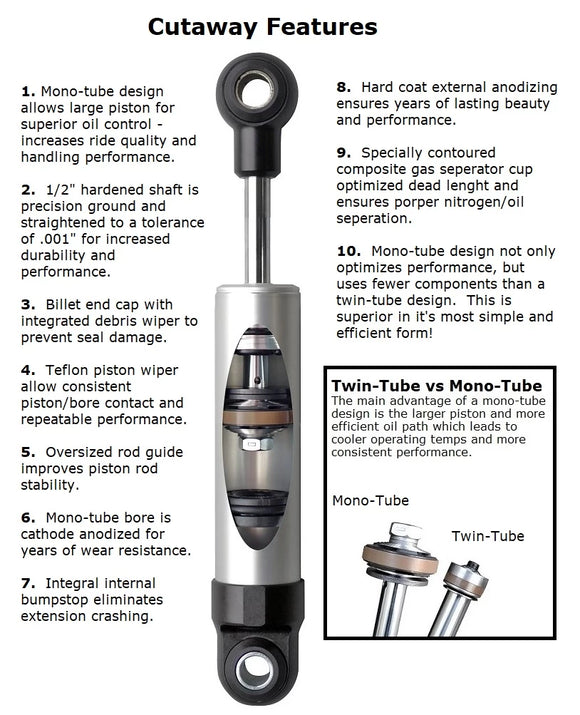

22149846 Shock absorbers are, without a doubt, the brains of your suspension. Nothing influences how your car rides and handles more than its shock absorbers. Their primary function is to control the oscillations of your car’s springs, thereby keeping your tires in contact with the road. To best accomplish that objective, RideTech shock absorbers utilize a monotube design which allows for a larger piston and more precise valving. The design is superior to twin tube shocks concerning damping and reliability. These HQ Series Shocks are rebound adjustable shock absorbers and offer exceptional quality thanks to impact-forged, hard-anodized bodies and heavy-duty shafts. They carry an industry-best 1,000,001-mile warranty. (Sold Each)
Fitment of this front shock includes:
1967-1969 Camaro & Firebird
1968-1974 Nova & Acadian
1968-1972 GM “A” Body (Chevelle, Cutlass, El Camino, Lemans, Skylark etc)
1978-1988 GM “G” Body (Monte Carlo, Cutlass, El Camino, Regal, Grand Prix etc)
1982-1993 S-10/S-15 (2WD)
Dimensions:
Compressed – 8.55″
Ride Height – 11.5″
Extended – 13.3″
Narrow T-Bar – 2.25″ to 2.56″ Center to Center
Suspension Location
Front
Compressed Length
8.5
Length at Ride Height
11.5
Extended Length
13
Shock Stroke
4.75"
Upper Mount
Stem Mount
Lower Mount
Tie Bar Pin Narrow – 2.250 to 2.562 Bolt Spacing
Actual Compressed
8.55"
Actual Extended Height
13.3"
Suspension Type
StreetGrip – Stock Upgrade
