Ridetech HQ Series Shock Single Adjustable 8.35in Stroke Stud/T-Bar Mounting 12.55in x 20.9in

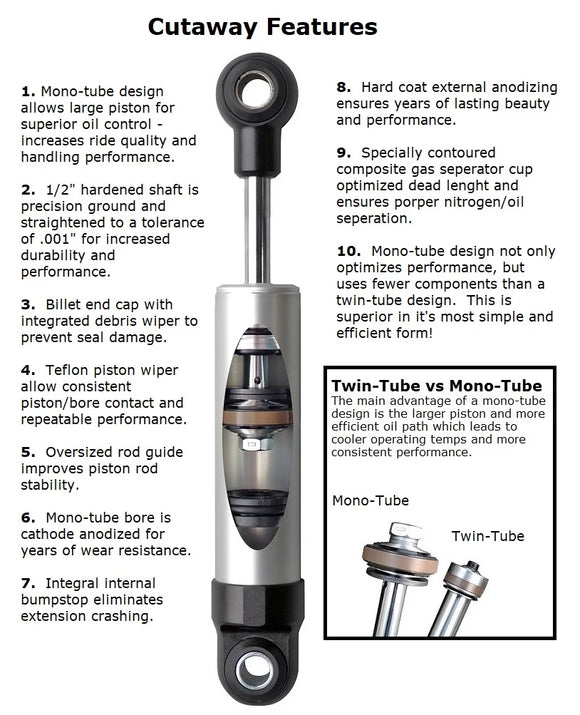

22199847 Shock absorbers are the brains of your suspension. They greatly influence how your car rides and handles. To best accomplish these objectives, Ridetech shock absorbers for 1970-1981 Camaros and Firebirds utilize mono tube valving which allows for a larger piston and more precise control. The design is superior to twin tubes shocks with respect to damping and reliability. Ridetech HQ Series Shocks are 100% bolt-on. They are rebound adjustable shock absorbers and offer exceptional quality thanks to impact-forged, hard-anodized aluminum bodies and heavy-duty shafts. They carry an industry-best 1,000,001 mile warranty.
Fitment of this rear shock includes:
1970-1981 Camaro
1970-1981 Firebird
Dimensions:
Compressed – 12.55″
Ride Height – 17.5″
Extended – 20.9″
Wide T-Bar – 2.312″ to 2.875″ Center to Center
Suspension Location
Rear
Compressed Length
12.5
Length at Ride Height
17.5
Extended Length
20
Shock Stroke
8.35"
Upper Mount
Stem Mount
Lower Mount
Tie Bar Pin Wide – 2.312 to 2.875 Bolt Spacing
Actual Compressed
12.55"
Actual Extended Height
20.9"
Suspension Type
StreetGrip – Stock Upgrade
