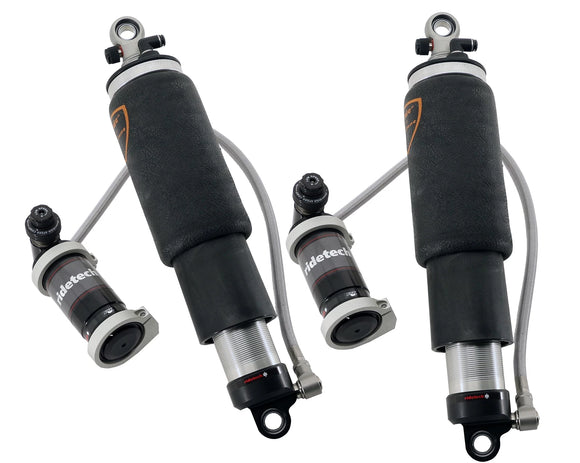

Ridetech TQ Series ShockWaves 5in Travel 5in dia Rolling Sleeve .625in/.625in Bearing

24350801 The 8000 ShockWave Series
*Requires RideTech StrongArms for proper installation.
Recommended Applications:
Solid rear axle: Rear axle weight is 1,500-2,400lbs.
NOT recommended for IFS installations… not enough load capacity
Diameter and load capacity: 5” diameter 8000 series = 1,200 lbs. @ 100 psi
Shock Dimensions
Stroke Compressed Length Ride Height Extended Height Top Mount
5.2 11.85 14.6 16.4 bearing
Our patented solution for a simplified air suspension system – just keeps getting better. The ShockWave® mounts just like a coilover and replaces the coil-spring with an adjustable air spring for a huge range of tuning options. It provides a simple, hightech way to provide the ultimate in adjustable suspension design. With more configuration options than ever before, the ShockWave is the premier foundation for a RideTech air suspension system.
Track Quality Series ShockWave
The Track Quality (“TQ”) Series features triple adjustable shock valving. It is housed in a impact forged aluminum construction. The TQ series is available in a wide range of stroke lengths, and mounting styles to fit a large variety of applications.
Features:
Single rebound adjustment PLUS dual stage high & low speed compression
Aluminum impact forged shock construction for leak free operation
Monotube design allows large piston for superior oil control, ride quality, and handling
Available in a wide range of stroke lengths, and mounting styles to fit large variety of applications
Remote reservoir includes mounting brackets for easy installation
Adjustability Provides More Options for Desired Driving Style and Loads
24350801_comp_FOX.pdf
Installation Instructions
Download File
System For
Ridetech 4-Link
Suspension Location
Rear
Suspension Type
Air Suspension
Year
1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make
Chevrolet, GMC
Model
1000 Series, 1500 Series, C10 Pickup
