Ridetech R-Joint XL Rod End with 1in-14 Right Hand Thread

90002898 R-Joint XL rod end with 1″-14 right hand thread. Includes spacers to create 9/16″ I.D. and 2-5/8″ width. Other bolt sizes and width’s also available.
FEATURES:
R-Joints are a revolutionary rod end design that provides low friction, full range articulation, long service life, lateral stability and quiet operation.
— Articulates in 3 planes 360 degree axial rotation and 50 degrees of total lateral rotation.
— 17-4 investment cast stainless steel housing with rolled threads.
— Polished stainless ball and RTX10 composite cage provides consistent low friction movement.
— Special RTX10 composite cage needs NO lubrication.
— Self cleaning design…movement not affected by ANY water, grit, dirt, or debris.
— Spring loaded closure keeps mechanism tight and rattle free for LIFE!

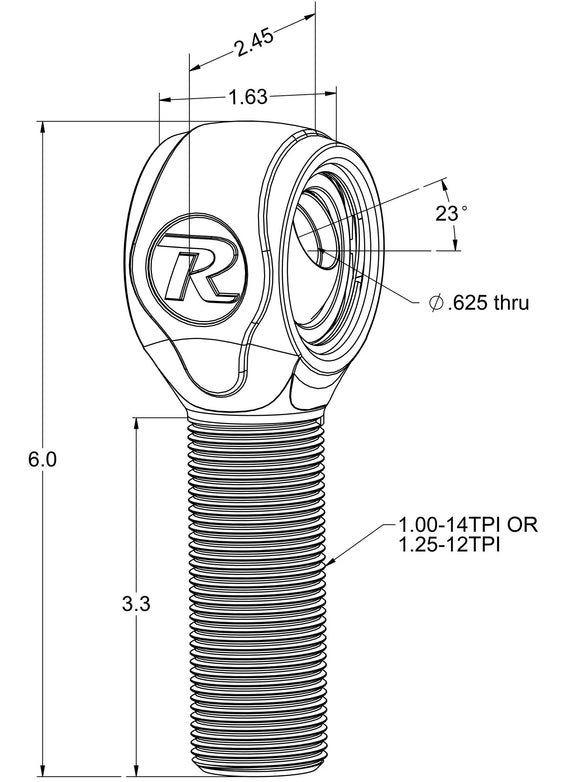

R-Joint XL Dimensions and Articulation:
Thread Sizes: 1″-14 RH
Through Bolt Size:9/16” [other sizes available, call for information] Total Articulation: 50 deg
R-Joint XL Material Specs:
Ball: 304 Stainless Steel
Composite: RTX10
Wave Spring: 17-7 Stainless Steel
Retainer Ring: 302 Stainless Steel
Housing: 17-4 Stainless Steel
Spacers: 303 Stainless Steel
Housing Manufacturing:
R-Joint XL housing is investment cast in the United States. The Casting then goes through a H900 Solution Anneal heat treatment to remove any crystallization. The heat treatment both increases tensile strength and ductility. All threading and machining is performed post heat treatment.
Composite Yield [starts to deform]: 17,250lbs
Composite Failure: 17,750lbs
Housing Yield [starts to deform]: 95,000lbs
Housing Failure: 1.00 Thread: 109,850lbs 1.25 Thread: 121,765lbs
R-Joint Size
R-Joint XL – 1" Shank
