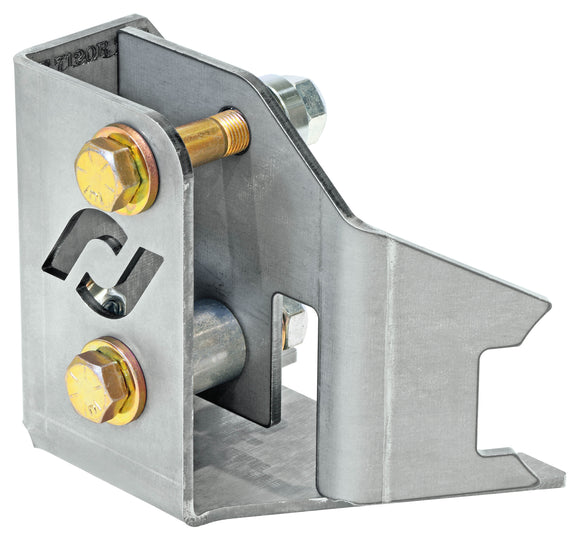

RockJock JK Geometry Correction Axle Bracket for Rear Trac Bar

RockJock's JK Rear Trac Bar Axle Bracket relocates the axle housing mounting point of the rear trac bar upward, correcting the location of the trac bar mounting point on lifted vehicles.
This kit is bolts to the factory axle housing and then requires some minor welding.
Bracket is finished in semi-gloss black and includes all necessary hardware for installation.

Kit Fits:

• JK Wrangler Unlimited (4-door) - All Model’s Stock Differentials
• JK Wrangler (2-door) - All Model’s Stock Differentials

Kit Includes:

• Trac Bar Relocation Bracket
• All Required Hardware

Notes:

• Lift - This kit is ideally designed to work on 2.5 in. to 4 in. lifted vehicles.
• Trac Bar - May be used with a factory trac bar (within the lift parameters above). Bracket may also be used with larger lift amounts, but will yield diminished benefit without the use of an adjustable trac bar, such as our CE-9120RJK Johnny Joint adjustable trac bar.
• Installation - Requires minor welding.

Instruction Manual:

• CE-9807RTBK Kit
