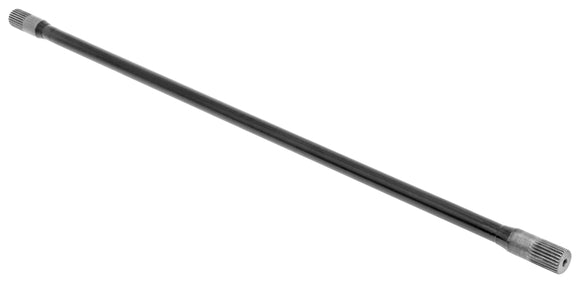

RockJock Antirock Sway Bar 40in Long x 1in Dia. x 25 Spline

RockJock’s Antirock Sway Bar Torsion Bars are available in various lengths and diameters to accommodate bolt-on and custom vehicle builds and various applications from crawler to overlander.
For ultimate strength and durability, Antirock bars are forged and heat treated 4340 chromoly, just like you would find in professional off-road competition sway bars.
This specific bar is 40 in. long from tip to tip, standard 1 in. OD at the ends with 25 splines and 1 in. diameter in the center.

Kit Fits:

• Universal Application
• Included in CE-9907 Series Universal Antirock Sway Bar Kits

Kit Includes:

• (1) Sway Bar Torsion Bar (40 in. long x 1 in. x 25 spline)

Component Specs.:

• Length  =  40 in. (tip to tip)
• Spline Count  =  25
• OD (of splines and bushing surface)  =  1.000 in.
• OD (of center of bar)  =  1 in.
• Threads (in ends of bar)  =  5/16 in.-24 x 1 1/8 in. deep
• Finish  =  semi-gloss black powder coat (bushing surface and splines masked)

Notes:

• Any 25 spline arms we offer will fit this bar, but this heavy rate bar is NOT for use with aluminum sway bar arms!
