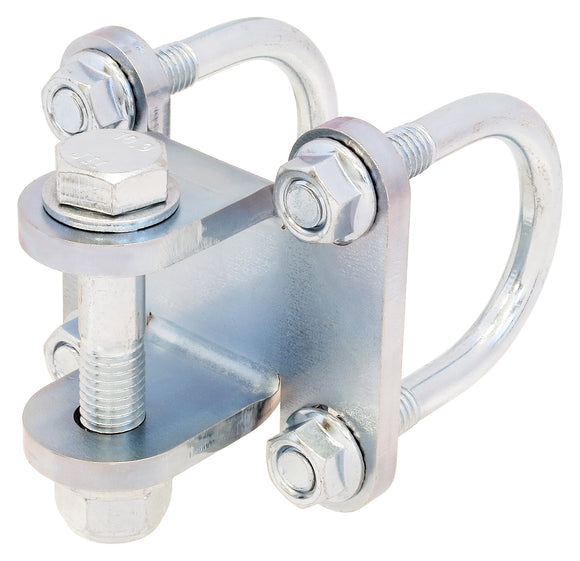

RockJock Steering Stabilizer Shock Bracket Kit Fits 1 5/8in Rods

When installing heavy duty steering with larger than stock rods or aftermarket differentials, you’ll likely encounter the need to relocate your steering stabilizer shock, or the need for a new bracket that fits a larger tie rod.
This Steering Stabilizer Shock Relocation Bracket from RockJock should do the trick! Designed to fit common 1 5/8 in./42mm tie rods, this U-bolt style bracket kit is an easy, bolt-on solution for remounting your stabilizer shock to keep your vehicle handling as it should!
Bracket is designed to fit most aftermarket shocks that feature a 1.405 in. mounting width, as well as factory JK and TJ shocks. Does not work with factory JL and JT shocks as the inboard end of those shocks features a 1.5 in. mounting width (see RJ-441108-101 for this same bracket that is compatible with the stock JL and JT shock).

Kit Fits:

• RockJock Currectlync JL, JT and JK Tie Rods
• All other 1 5/8 in./40-42mm tube size Tie Rods
• JK Wrangler and Unlimited Factory Stabilizer Shock
• TJ Wrangler and LJ Unlimited Factory Stabilizer Shock
• All other traditional width spec. stabilizer shocks w/ 1.405 in. mounting width

Kit Includes:

• Laser cut and formed 1/4 in. steel bracket
• All required hardware and step-by-step instructions

Kit Features:

• Laser cut and formed 1/4 in. steel bracket
• Clear zinc plate finish
• 2-year warranty

Notes:

• Fits 1 5/8 in./40-42 mm tie rods only!
• Bracket accepts 1.405 in. wide (common, standard) mounting width shocks.
• Does not work with factory JL and JT shocks. See our RJ-441105-101 or RJ-441108-101 bracket kit offerings.
• In JL and JT applications, usage of this bracket will require you to relocate the other end of the stabilizer shock as well.
• If you are using this bracket on a JL or JT, you will need our RJ-441102-101 bracket kit for the other end of the shock.
• For use with traditional style stabilizer shocks only – not for use with ram assist!
• This is the bracket that is included in our JK-9703 JK Currectlync Modular Extreme Duty Steering System

Instruction Manual:

• JK-9703SB Kit
