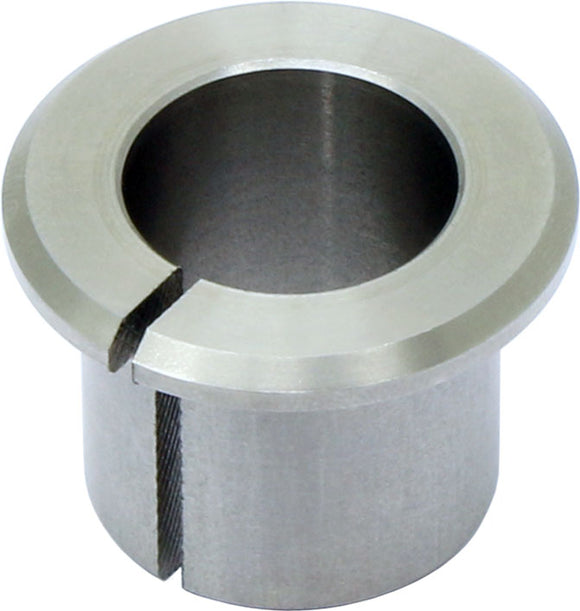

RockJock JK Currectlync Steel Tapered Bushing Flipped Drag Link Applications

RockJock’s Tapered Knuckle Bushing is used when installing drag links on JK vehicles.
When installing our JK-9704RDL reversed JK Drag Link, you must drill the tapered drag link mounting hole in the JK’ passenger’s knuckle out to .875 in. and then install this bushing from the top of the knuckle. The bushing reversed the taper in the knuckle so that the new, reversed Drag Link may be installed from the top.
Bushing is CNC machined billet steel and features stock JK drag link rod end taper.

Kit Fits:

• Into a .875 in. hole

Kit Includes:

• (1) Billet Steel Tapered ID Bushing

Component Specs.:

• Construction  =  CNC machined billet steel
• ID  =  JK Drag Link Rod End Taper
• Bushing Flange  =  1.200 in. OD x .125 in. Thick
• Bushing Press Area  =  .870 in. OD x .726 in. Thick
• Fitment  =  inserts into .875 in. hole

Notes:

• This bushing is included in our JK-9704RDL reversed JK Drag Link Kit.
• Make sure you have the proper tools and equipment to install this piece before attempting this job! Refer to pages 3-4 of our JK Currectlync Steering instruction manual here.
• For use with JK Wrangler and Unlimited taper only!
