RockJock Adjustable Sway Bar End Link Rod End Pack for JT Rear Sealed Style

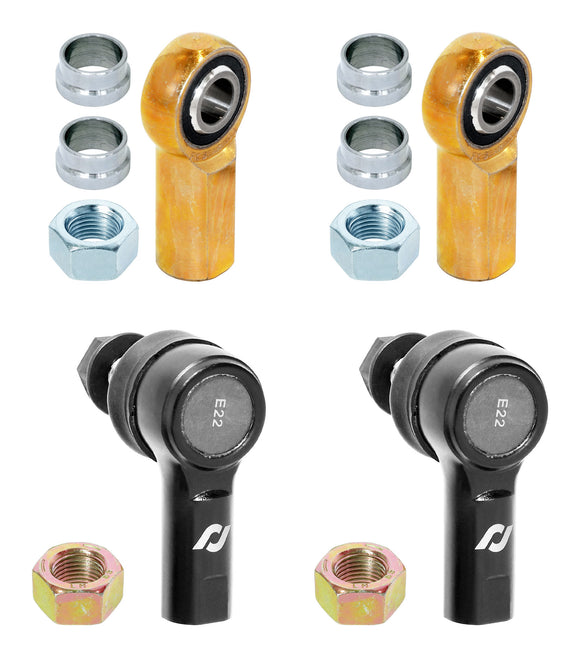

Sway Bar End Link Hardware Pack for JT Gladiator rear (w/o Antirock) includes 2 left hand thread sealed rod ends with locking nuts (connect to stock sway bar), 2 thru-bolt heim joints (for frame end of links), 4 heim joint misalignment spacers, 2 right hand and 2 left hand jam nuts.

Component Specs.:

• Sealed Rod End Female Threads  =  1/2 in.-20 LH
• Sealed Rod End Stud Threads  =  12mm-1.75
• Heim Joint Female Threads  =  1/2 in.-20 RH
• Heim Joint Thru-Hole  =  1/2 in. ID
• Misalignment Spacer  =  .515 in. ID x .690 in. OD x .238 in. tall
• Jam Nut Threads  =  1/2 in.-20 RH/LH

Parts List:

• Sealed Rod End (LH thread):  RJ-527000-102
• Thru-Bolt Heim Joint (RH thread):  CE-99006B
• 1/2 in.-20 Jam Nut (RH thread):  CE-99002JN
• 1/2 in.-20 Jam Nut (LH thread):  CE-H0020
• 1/2 in. ID Heim Misalignment Spacer:  RJ-524200-1
