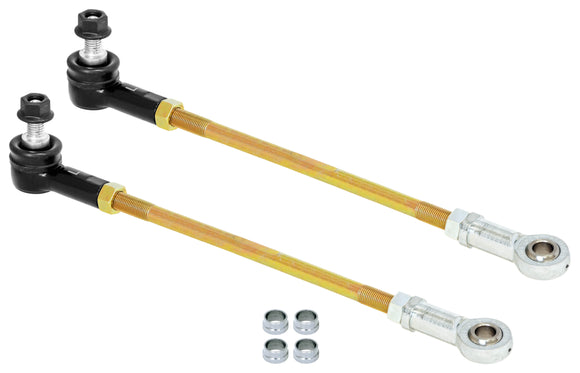

RockJock JT Adjustable Rear Sway Bar End Link Kit 12 1/2in Long Rods Sealed Rod Ends

This RockJock Adjustable Sway Bar End Link Set for the rear of JT Gladiators features 12 1/2 in. long link rods with 2 5/8 in. of 1/2 in.-20 LH thread and 2 5/8 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
The Sealed Rod Ends in this kit are a RockJock exclusive and feature a weatherproof boot for a long life span in all climates.
Link sets are compatible with our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
Being that this specific end link set is designed for the JT rear application, this kit includes 2 of our sealed rod ends for attachment to the axle and 2 thru-bolt heim joints for attachment to the chassis

Kit Fits:

• (Compatible with) JT Gladiator RockJock Sport Suspension Kit
• Universal Use

Kit Includes:

• (2)  12 1/2 in. Link Rods (gold)
• (2)  1/2 in.-20 LH Sealed End Link Rod Ends
• (2)  1/2 in.-20 RH Thru-Bolt Heim Joints
• (2)  1/2 in.-20 LH Jam Nuts
• (2)  1/2 in.-20 RH Jam Nuts
• (4)  Heim Misalignment Spacers

Gold Rod Specs.:

• 12 1/2 in. Long
• 1/2 in. Diameter
• 1/2 in.-20 LH Threads – 2 5/8 in. Long
• 1/2 in.-20 RH Threads – 2 5/8 in. Long
• Center Smooth Area – 7 1/4 in. Long

Adjustment Range:

• Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the ends and jam nuts screwed on until they meet the smooth area of the rod), C-C is 12.570 in.
• Extended – Uncut rods with ends installed safely adjust out to 15.945 in. C-C

Notes:

• These are optional, upgraded links that are compatible with our JT Gladiator Sport Suspension Kit, for use in the rear
• Wrench flats:  gold rods - 11mm wrench,  sealed rod ends – 18mm wrench,  heim joints - 19mm wrench,  jam nuts - 3/4 in. wrench

Parts List:

• 12 1/2 in. Link Rod:  RJ-517200-1
• Sealed Rod End (LH):  RJ-527000-102
• Thru-Bolt Heim Joint (RH):  CE-99006B
• Jam Nut (LH):  CE-H0020
• Jam Nut (RH):  CE-95462A525
