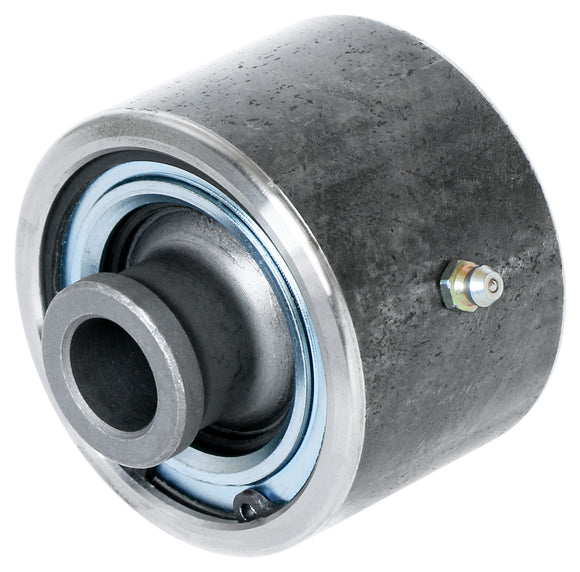

RockJock Johnny Joint Rod End 3in Narrow Weld-On Chromoly 3.250in x .750in Ball Ext. Greased

RockJock Johnny Joint Rod End 3in Narrow Weld-On Chromoly 3.250in x .750in Ball Ext. Greased

$176.85 CAD

RockJock SKU: rokRJ-365000-101

Earn [points_amount] when you buy this item.

Description Availability

Details

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner, heat treated ball. The joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined chromoly tubing that is fitted with a zerk fitting for greasing. This specific joint is 3 in. o.d., narrow body (to provide maximum articulation) and features a 3.250 in. mounting width and a .750 in. thru bolt hole.

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks. This means the product is special ordered.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
