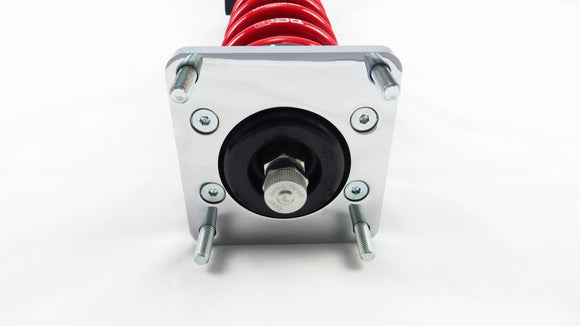

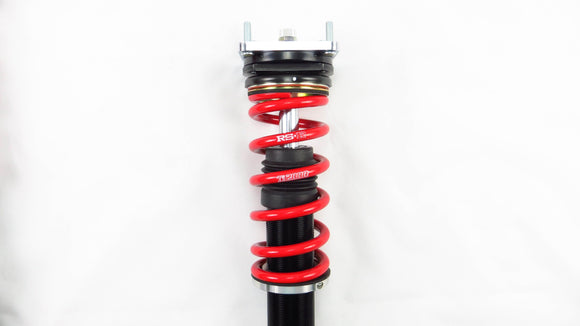

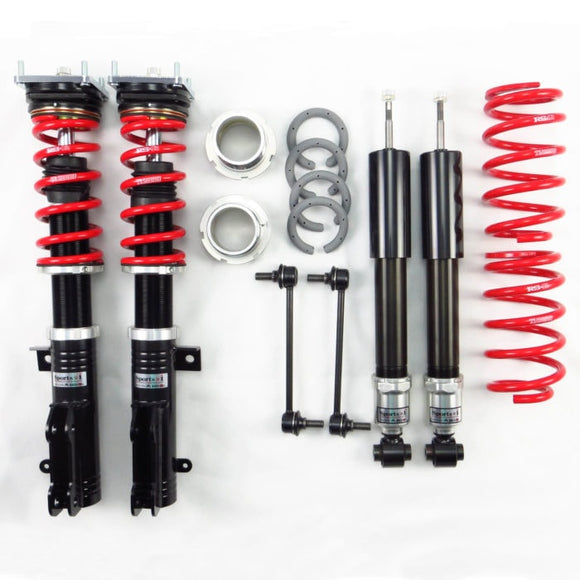

RS-R 12-14 Ford Mustang Sports-i Coilovers

XBIFO100M

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Part#:  XBIFO100M
Compatibility: 2012-2014 Ford Mustang V8/V6
Chassis code:  S197/DC2

Preset Approximate Height From RS-R:
Front -25mm to -30mm (-1.0inch to -1.2inch)
Rear -35mm to -40mm (-1.4 inch to -1.6inch)

Maximum Adjustment Ranges:
Front 0mm to -100mm (0inch to -4.0inch)
Rear -25mm to -60mm (-1.0inch to -2.4inch)

Recommended Adjustments for Optimal Ride-ability:
Front -5mm to -50mm (-0.2inch to -2.0inch)
Rear -25mm to -60mm (-1.0inch to -2.4inch)

Spring Rates:
Front 7.00kg/mm
Rear 5.10kg/mm
