XBIM130M

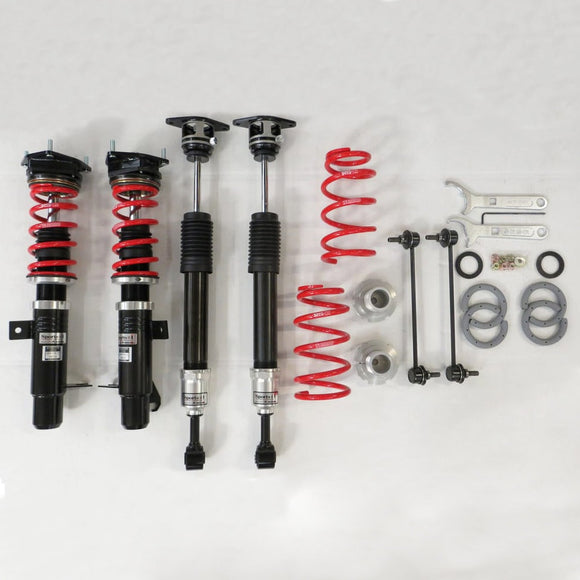

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance. Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.
Part#: XBIM130M
Compatibility: 2009-2013 Mazda 3 5dr
Chassis code: BLEFW
Preset Approximate Height From RS-R:
Front -20mm to -25mm (-0.8inch to -1.0inch)
Rear -30mm to -35mm (-1.2inch to -1.4inch)
Maximum Adjustment Ranges:
Front +5mm to -70mm (+0.2inch to -2.8inch)
Rear -15mm to -60mm (-0.6inch to -2.4inch)
Recommended Adjustments for Optimal Ride-ability:
Front 0mm to -40mm (-0inch to -1.6inch)
Rear -15mm to -60mm (-0.6inch to -2.4inch)
Spring Rates:
Front 5.00kg/mm
Rear 3.50kg/mm
