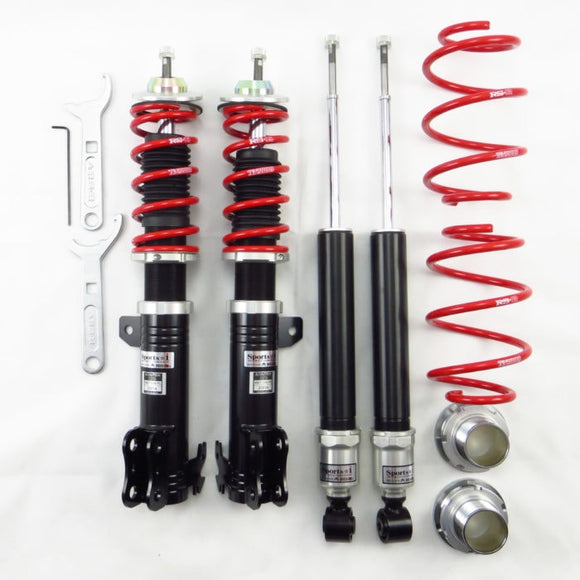

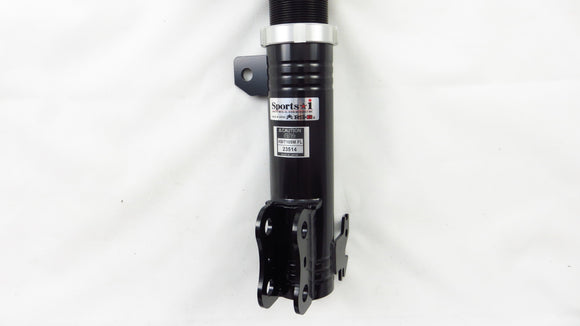

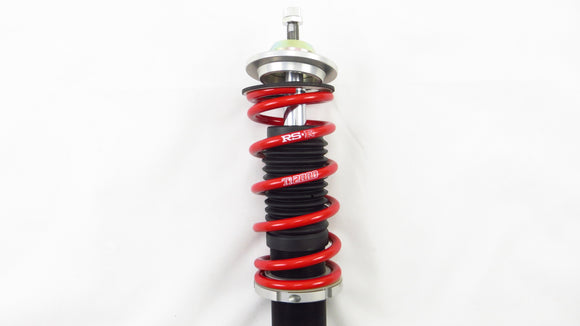

RS-R 11+ Toyota Prius C Sports-i Coilovers

XBIT105M

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Part#: XBIT105M
Compatibility: 2012-2019 Prius C
Chassis code: NHP10

Preset Approximate Height From RS-R:
Front  -45mm (-1.8inch)
Rear -40mm (-1.6inch)

Maximum Adjustment Ranges:
Front -35mm to -90mm (-1.4inch to -3.6inch)
Rear  -20mm to -60mm (-0.8inch to -2.4inch)

Recommended Adjustments for Optimal Ride-ability:
Front -35mm to -70mm (-0.8inch to -2.8inch)
Rear  -20mm to -60mm (-0.8inch to -2.4inch)

Spring Rates:
Front  4.00kg/mm
Rear 2.40kg/mm
