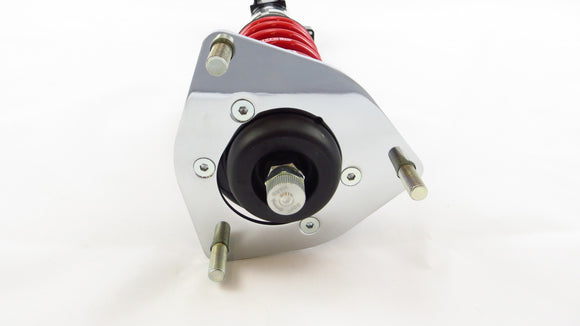

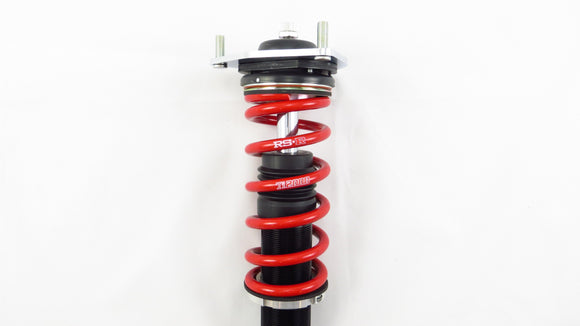

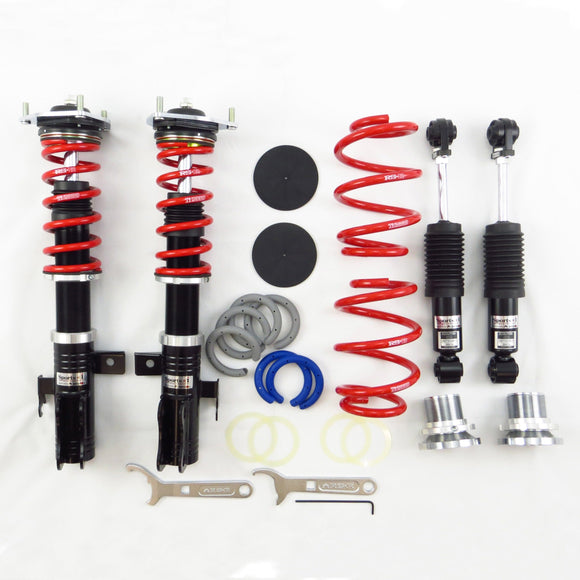

RS-R 15+ Lexus NX200T (AGZ10) Sports-i Coilovers

XBIT532M

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Part#: XBIT532M
Compatibility: 2015-2017 Lexus NX200T FWD & AWD
Chassis code: AGZ10 & AGZ15

Specifications for FWD:

Preset Approximate Height From RS-R:
Front -45mm (-1.8inch)
Rear -45mm (-1.8inch)

Maximum Adjustment Ranges:
Front -20mm to -125mm (-0.8inch to -5.0inch)
Rear -25mm to -80mm (-1.0inch to -3.1inch)

Recommended Adjustments for Optimal Ride-ability:
Front  -30mm to -70mm (-1.2inch to -2.8inch)
Rear -25mm to -80mm (-1.0inch to -3.1inch)

Specifications for AWD:

Preset Approximate Height From RS-R:
Front -45mm (-1.8inch)
Rear -45mm (-1.8inch)

Maximum Adjustment Ranges:
Front -20mm to -125mm (-0.8inch to -5.0inch)
Rear -30mm to -80mm (-1.2inch to -3.1inch)

Recommended Adjustments for Optimal Ride-ability:
Front  -30mm to -70mm (-1.2inch to -2.8inch)
Rear  -30mm to -80mm (-1.2inch to -3.1inch)

Spring Rates:
Front 6.00kg/mm
Rear 6.30kg/mm
