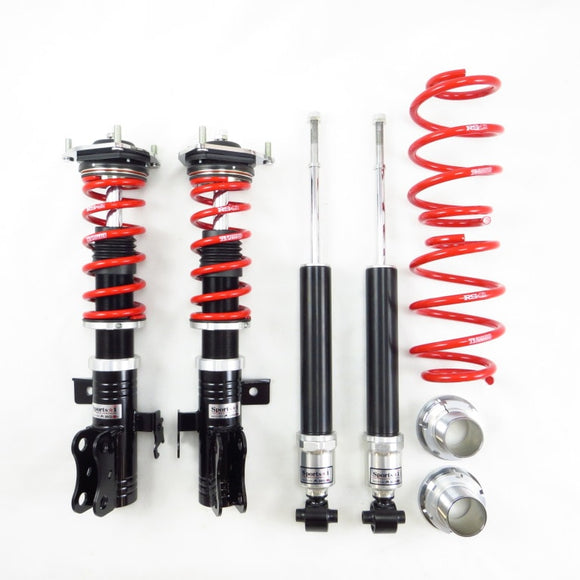

RS-R 2016+ Scion iM (ZRE186L) Super-i Coilovers

XBIT557M

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Part#: XBIT557M
Compatibility: 2016 Scion iM and 2017-2018 Toyota Corolla iM
Chassis code: ZRE186L

Preset Approximate Height From RS-R:
Front -35mm to -40mm (-1.4inch to -1.6inch)
Rear -35mm to -40mm (-1.4inch to -1.6inch)

Maximum Adjustment Ranges:
Front -5mm to -80mm (-0.2inch to -3.1inch)
Rear -20mm to -60mm (-0.8inch to -2.4inch)

Recommended Adjustments for Optimal Ride-ability:
Front -15mm to -55mm (-0.6inch to -2.2inch)
Rear -20mm to -60mm (-0.8inch to -2.4inch)

Spring Rates:
Front 5.00kg/mm
Rear 3.70kg/mm
