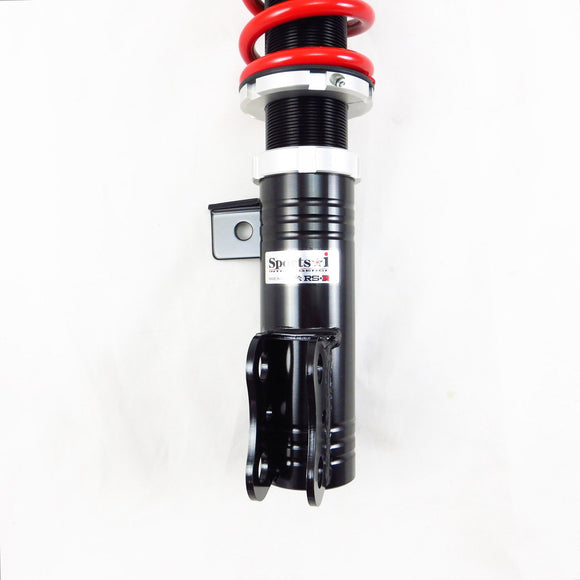

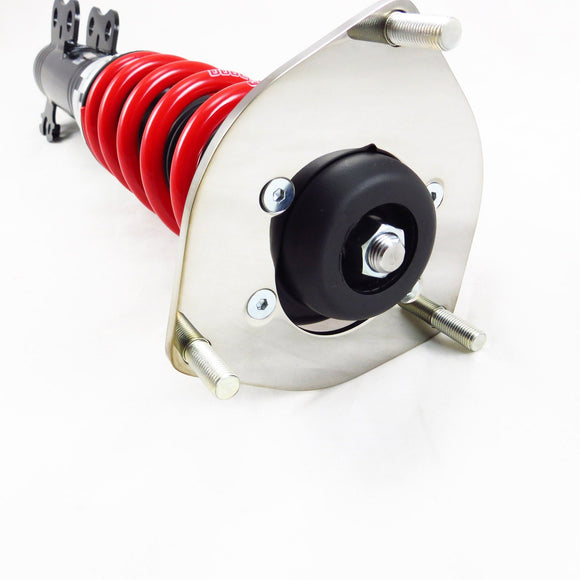

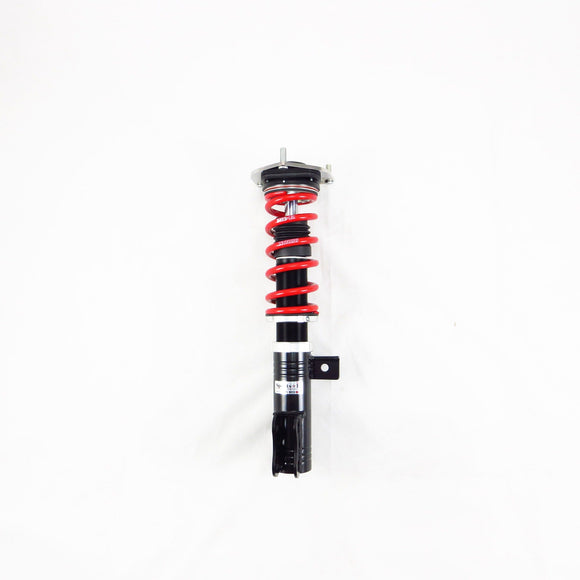

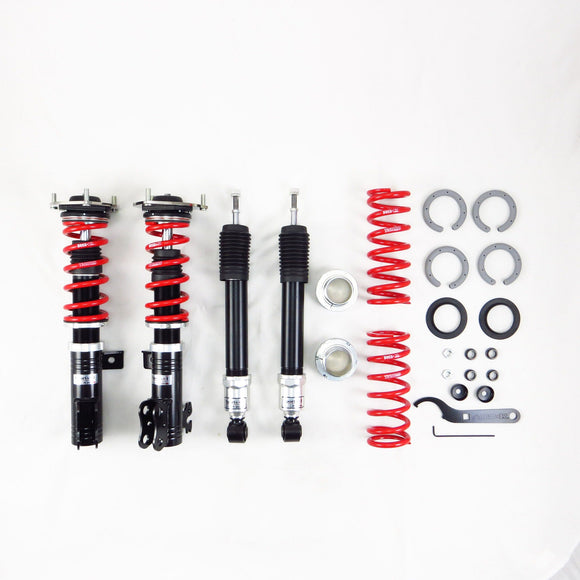

RS-R 2019+ Toyota Corolla Hatchback Sports-i Coilovers

XBIT576M

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Part#: XBIT576M
Compatibility: 2019+ Toyota Corolla Hatchback
Chassis code: ZWE211H

Preset Approximate Height From RS-R:
Front -20mm to -25mm (-0.8in to -1.0in)
Rear -30mm to -35mm (-1.2in to -1.4in)

Maximum Adjustment Ranges:
Front +20mm to -50mm (+0.8in to -2.0in)
Rear -10mm to -60mm (-0.4in to -2.4in)

Recommended Adjustments for Optimal Ride-ability:
Front  0mm to -45mm (0.0in to -1.8in)
Rear -10mm to -60mm (-0.4in to -2.4in)

Spring Rates:
Front 6.0kg/mm
Rear 6.0kg/mm
