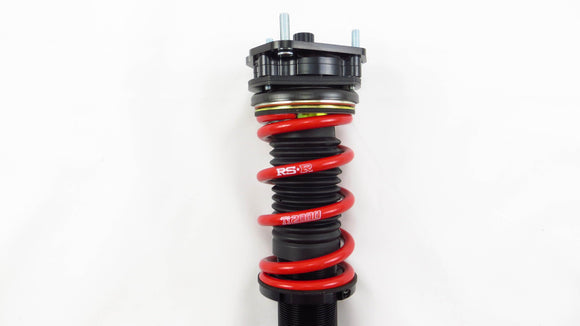

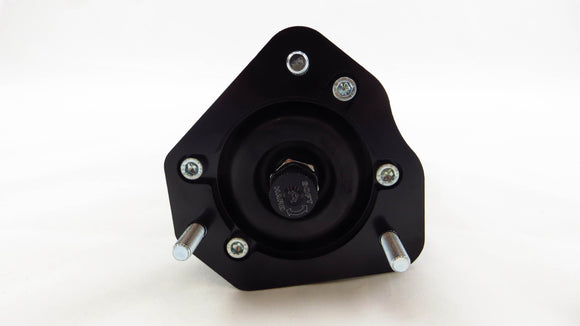

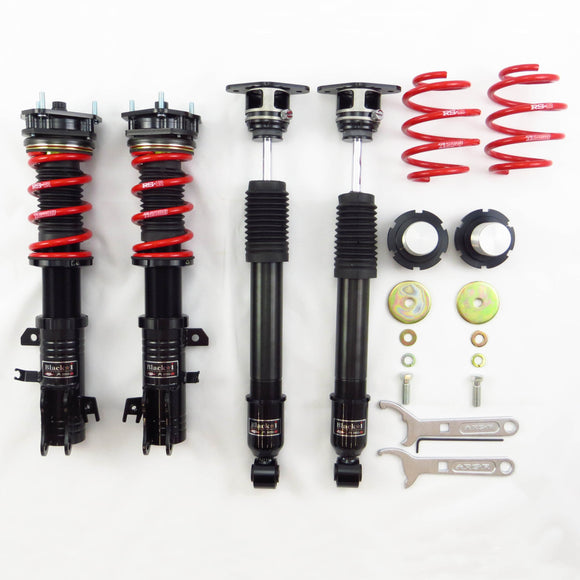

RS-R 07+ Mazda Mazda 2 (DE5FS) Black-i Coilovers

When being looking good just isn’t good enough is something the Black-I series coilovers has been specially designed for.  To perform at extreme vehicle drop levels while providing a smooth and comfortable ride.  There’s no reason to sacrifice looking good for ride comfort.

Part#: XBKM606M
Compatibility: 2007-2014 Mazda 2
Chassis code: DE5FS

Preset Approximate Height From RS-R:
Front -45mm to -50mm (-1.8inch to -2.0inch)
Rear -75mm to -80mm (-3.0inch to -3.2inch)

Maximum Adjustment Ranges:
Front -35mm to -115mm (-1.0inch to -4.6inch)
Rear -75mm to -100mm (-3.0inch to -4.0inch)

Recommended Adjustments for Optimal Ride-ability:
Front -20mm to -60mm (-0.8inch to -2.4inch)
Rear -25mm to -65mm (-1.0inch to -2.6inch)

Spring Rates:
Front 6.00kg/mm
Rear 2.60kg/mm
