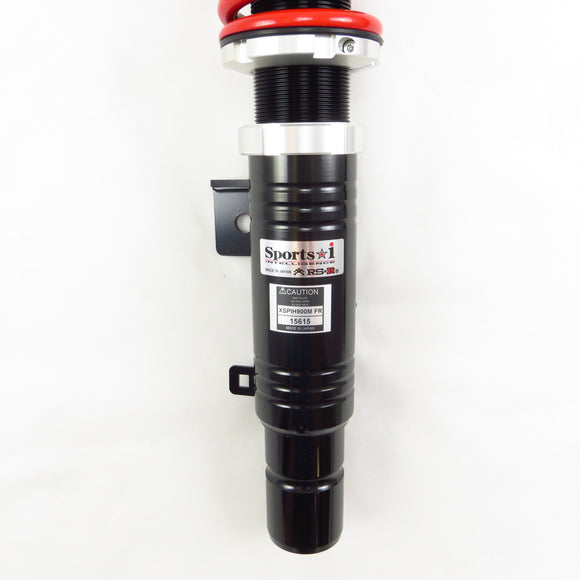

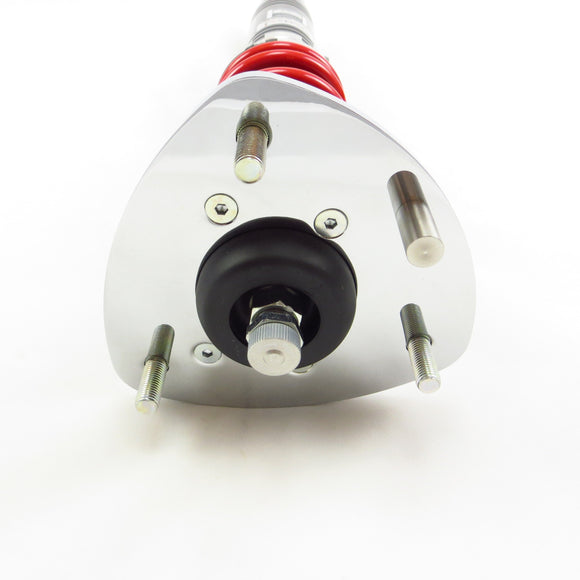

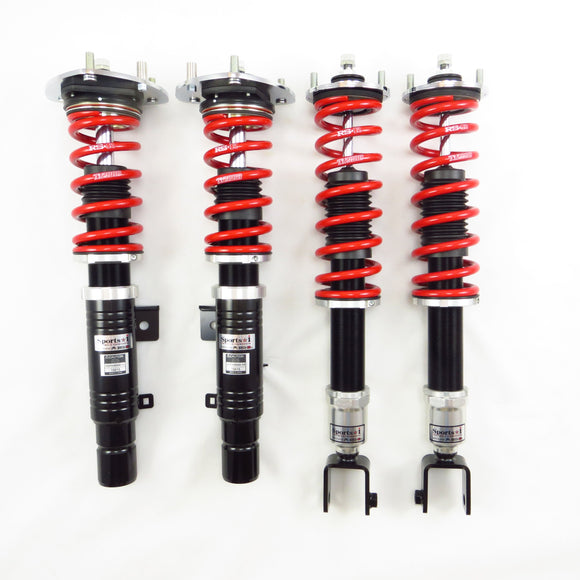

RS-R 2015+ Acura TLX AWD Sports-i Coilovers

XSPIH900M

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Part#: XSPIH900M

Compatibility: 2015-2020 ACURA TLX 3.5L AWD
Chassis code:

Preset Approximate Height From RS-R:
Front -30mm to -35mm (-1.2in to -1.4in)
Rear -30mm to -35mm (-1.2in to -1.4in)

Maximum Adjustment Ranges:
Front 0mm to -65mm (0in to -2.6in)
Rear +25mm to -110mm (+1in to -4.4in)

Recommended Adjustments for Optimal Ride-ability:
Front -10mm to -55mm (-0.4in to -2.2in)
Rear -15mm to -60mm (-0.6in to -2.4in)

Compatibility: 2015+ ACURA TLX 3.5L FWD
Chassis code:

Preset Approximate Height From RS-R:
Front -30mm to -35mm (-1.2in to -1.4in)
Rear -30mm to -35mm (-1.2in to -1.4in)

Maximum Adjustment Ranges:
Front 0mm to -60mm (0in to -2.4in)
Rear +30mm to -100mm (+1.2in to -4.0in)

Recommended Adjustments for Optimal Ride-ability:
Front -10mm to -50mm (-0.4in to -2.0in)
Rear -10mm to -50mm (-0.4in to -2.0in)

Compatibility: 2015+ ACURA TLX 2.4L FWD
Chassis code:

Preset Approximate Height From RS-R:
Front -25mm to -30mm (-1.0in to -1.2in)
Rear -25mm to -30mm (-1.0in to -1.2in)

Maximum Adjustment Ranges:
Front +5mm to -60mm (+0.2in to -2.4in)
Rear +30mm to -100mm (+1.2in to -4.0in)

Recommended Adjustments for Optimal Ride-ability:
Front +5mm to -60mm (+0.2in to -2.4in)
Rear -10mm to -50mm (-0.4in to -2.0in)

Spring Rates:
Front 7.0kg/mm
Rear 5.0kg/mm
