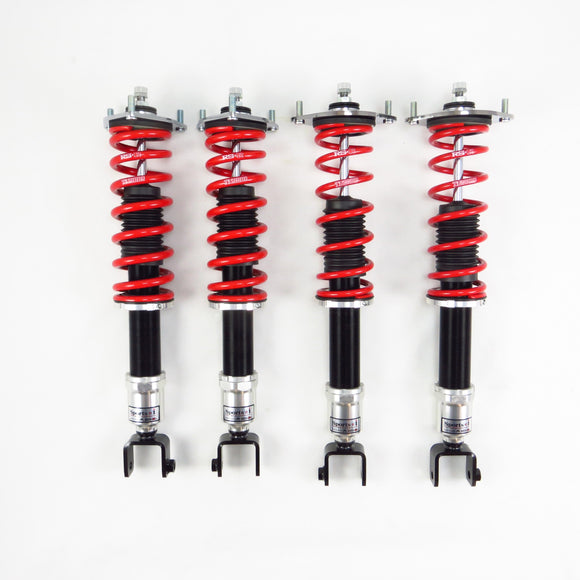

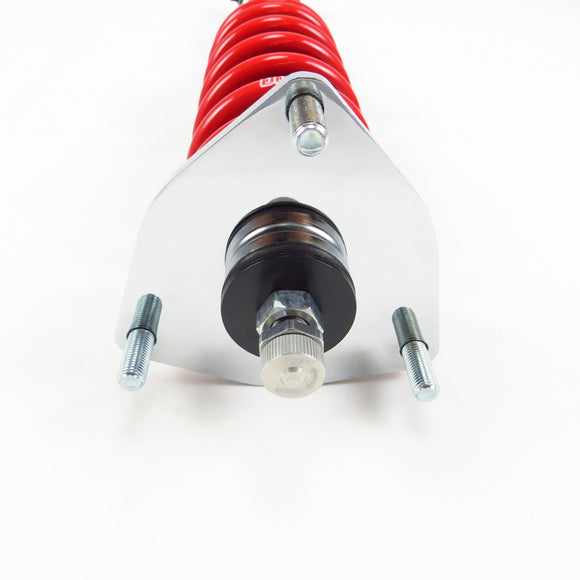

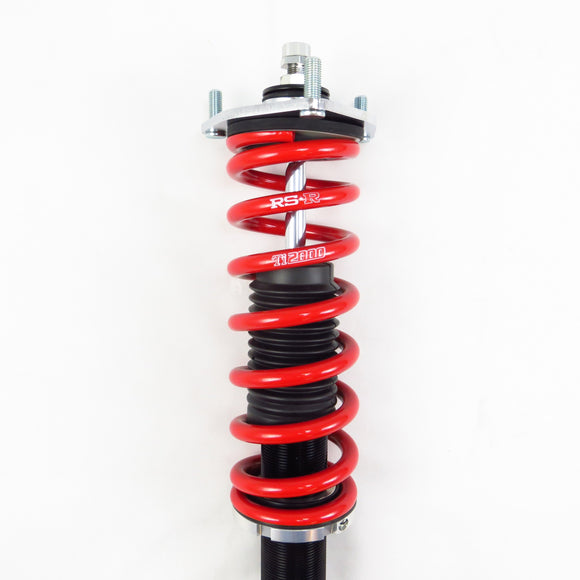

RS-R 2016+ Mazda Miata Sports-i Coilovers

XSPIM032M

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Part#: XSPIM032M
Compatibility: 2016+ Mazda MX-5
Chassis code: ND

Preset Approximate Height From RS-R:
Front -25mm to -30mm (-1.0in to -1.2in)
Rear -20mm to -25mm (-0.8in to -1.0in)

Maximum Adjustment Ranges:
Front +10mm to -95mm (+0.4in to -3.8in)
Rear +5mm to -110mm (+0.2in to -4.3in)

Recommended Adjustments for Optimal Ride-ability:
Front -5mm to -55mm (-0.2in to -2.2in)
Rear -5mm to -45mm (-0.2in to -1.8in)

Spring Rates:
Front 6.0kg/mm
Rear 3.0kg/mm
