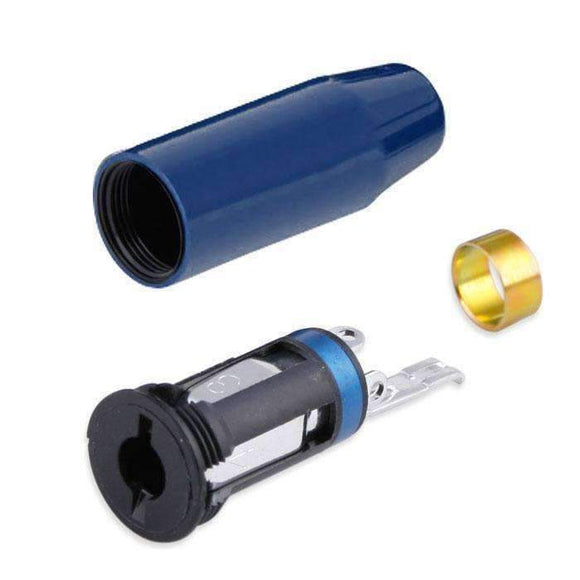

Rugged Radios Military Grade Nexus Replacement Jack TJ-102

SKU: NEXUS-TJ102-BLUE In-Line Jack, Contacts Molded Into a Plastic Body, Accommodates Larger Cable Diameter.
Conductors - 4
Application - Ruggedized Commercial Military
Overall Width - .828 in
Overall Height - .828 in
Overall Length - 2.312 in
Contact Diameter - .285 in
Shell Material - Plastic
Contact Material - Nickel Plated Beryllium Copper
Standard - MIL-C-9177
Alternate P/N - M9177/3-1 U-92A/U
Solder Contacts Terminals - Pre-tinned over Nickel Plating
Contact Resistance - < .02 O
Insulation Resistance - > 1,000 mO
Dielectric Withstanding Voltage - M9177/3-1 U-92A/U
Insertion Force Maximum - 13 lb
Withdrawl Force - 6 to 10 lb
